CableWholesale 6-Feet Molded DB9 Male/DB25 Male, 9C, (10D1-02106)
Regular price
Rs. 1,053.88
Regular price
Sale price
Rs. 1,053.88
Unit price
per
Couldn't load pickup availability
About this item

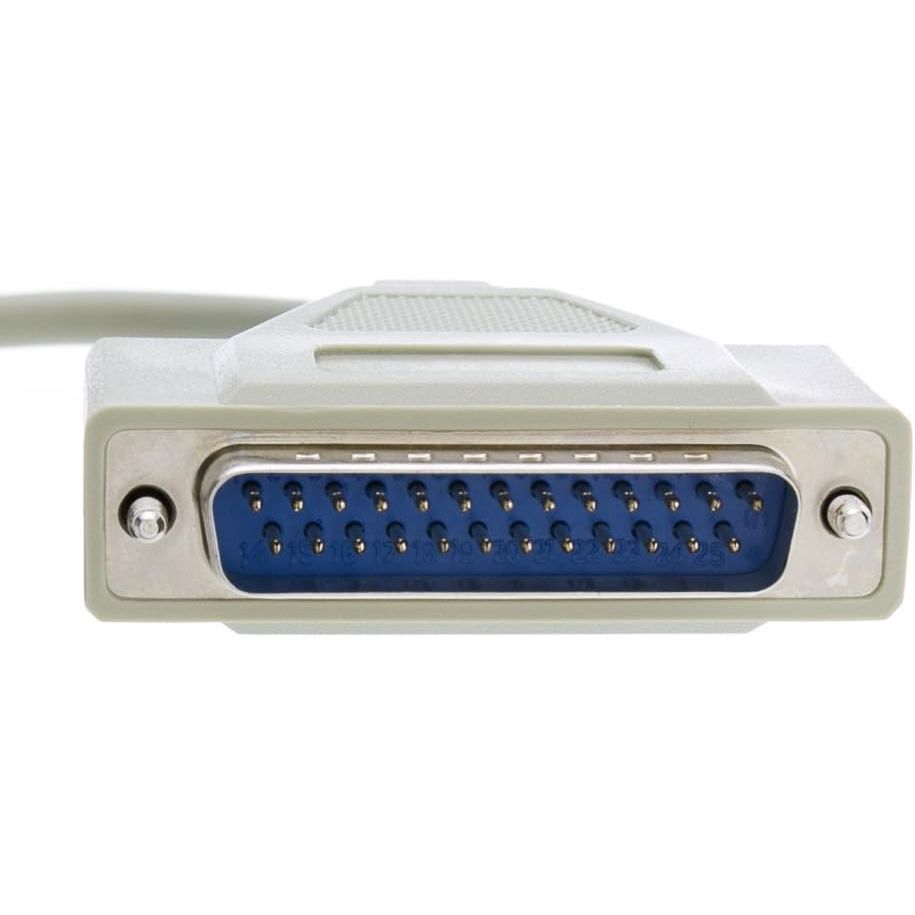

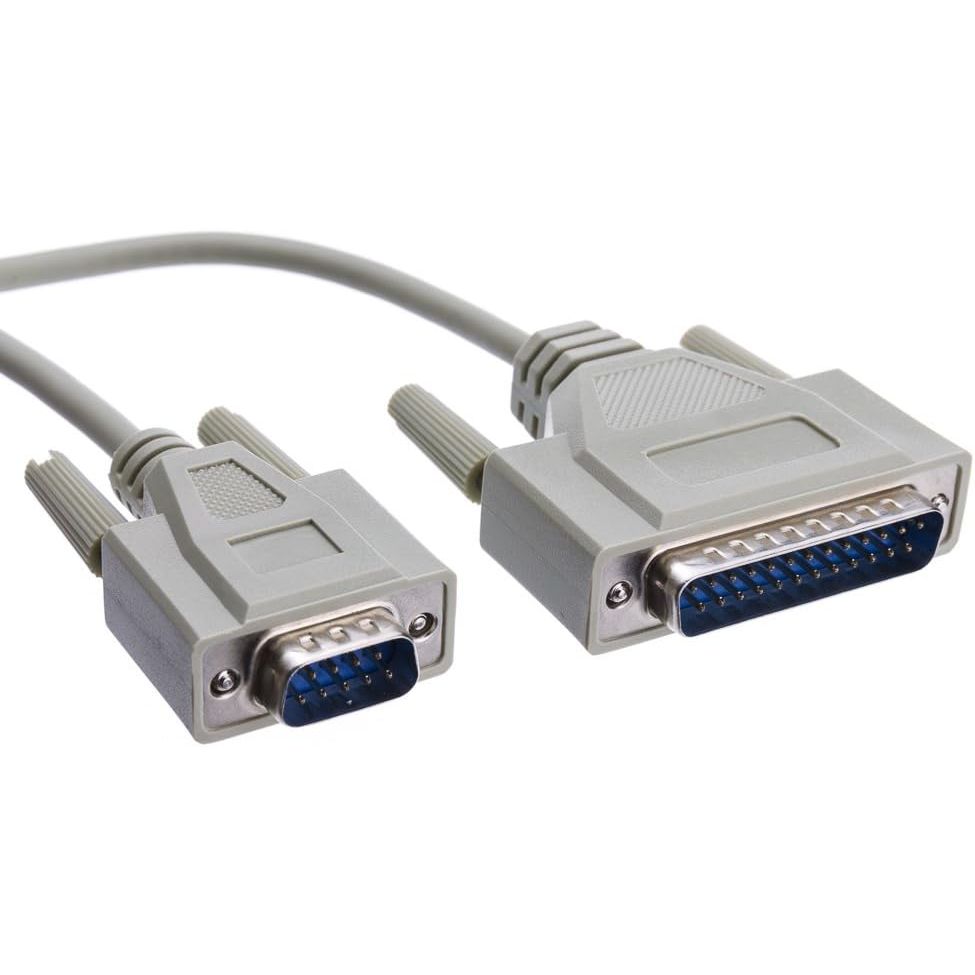

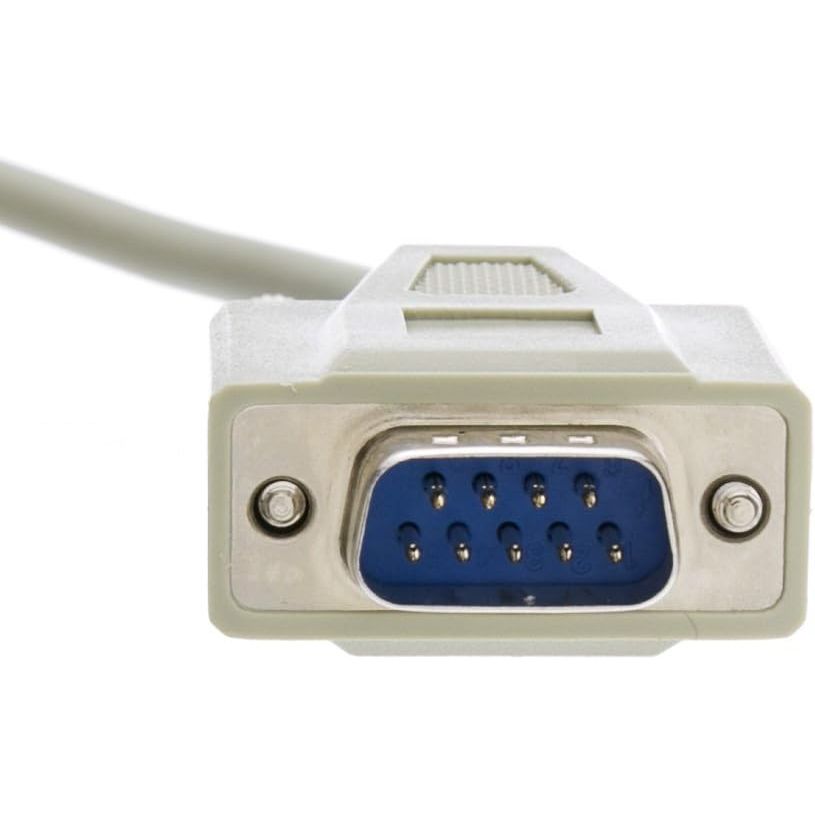

- End 1 & 2: DB9 Male/ DB25 Male

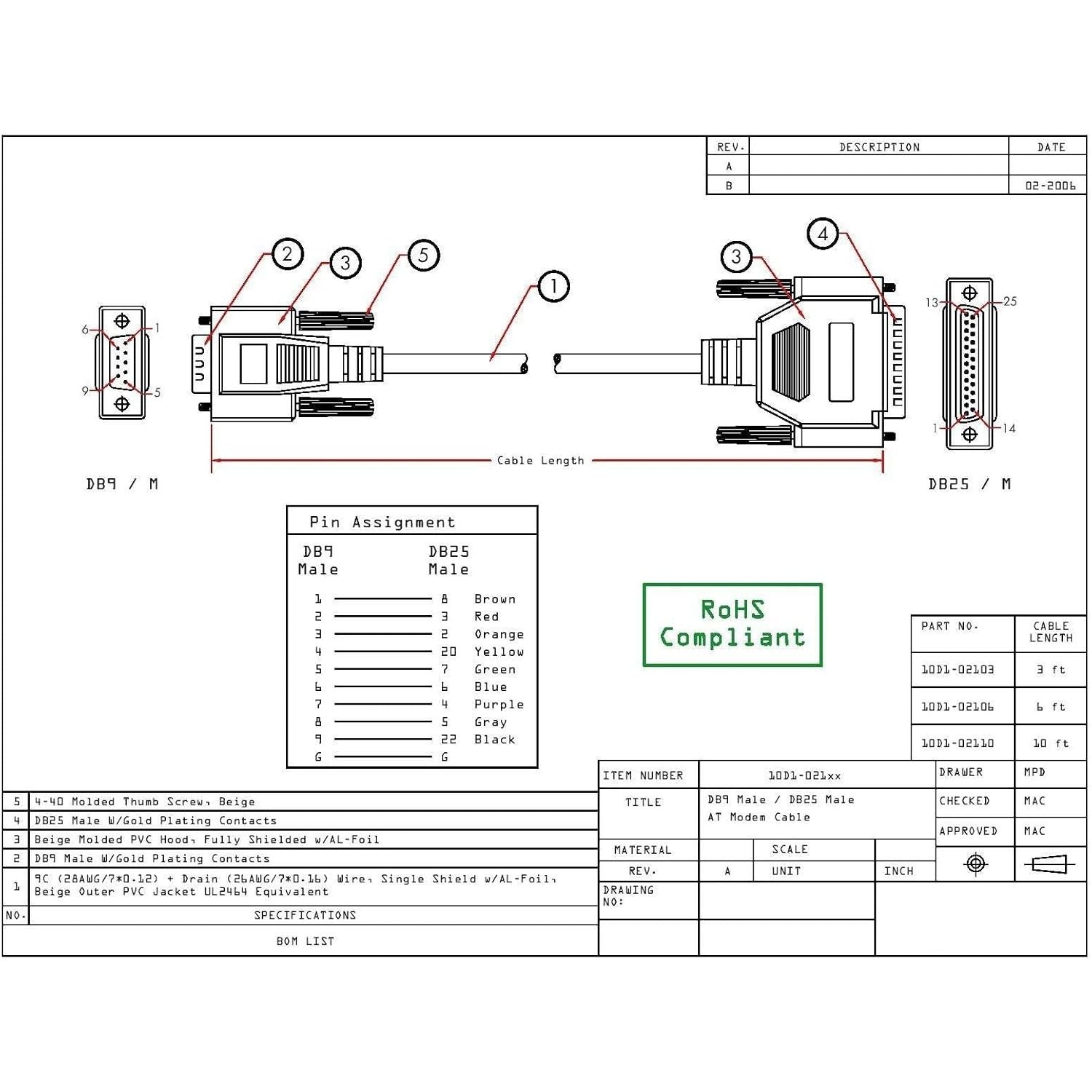

- 8 Conductor pin outs: 1-8, 2-3, 3-2, 4-20, 5-7, 6-6, 7-4, 8-5, 9-22
- At modem Cable. 28 AWG, 8 conductor
- Aluminum Mylar Foil Shielded with Drain wire
Description
Our 6 foot high quality serial cable features molded connectors and gold Plated contacts for superior corrosion resistance ensuring a solid connection for the life of the cable. The connectors are DB9 Male to DB25 male supporting 9 conductors. This cable is ideal for connecting 25 pin serial devices to laptops, computers and expansion/interface cards that have a 9 pin serial port. This male to male serial cable is solidly constructed, UL rated and RoHS compliant.
Product Details
| Property | Value |
|---|---|
| upc | 846568000904 |
| asin | B000I1EXKO |
| brand | CableWholesale |
| color | Silver |
| shape | Round |
| cable type | Serial |
| model name | 10D1-02106 |
| unit count | 1 Count |
| item weight | 5.3 ounces |
| manufacturer | CableWholesale |
| connector type | VGA |
| number of pins | 25, 9 |
| outer material | Polyvinyl Chloride (PVC) |
| number of items | 1 |
| special feature | Tangle Free |
| connector gender | Male-to-Male |
| customer reviews | 4.6 4.6 out of 5 stars 53 ratings 4.6 out of 5 stars |
| best sellers rank | #68 in Serial Cables |
| item model number | 10D1-02106 |
| specification met | RoHS, UL |
| compatible devices | Laptop |
| product dimensions | 5 x 3 x 3 inches |
| date first available | August 18, 2006 |
| indoor outdoor usage | Indoor, Outdoor |
| item dimensions lxwxh | 5 x 3 x 3 inches |
| compatible phone models | No Compatible Phone Models |
| recommended uses for product | Monitor |
| standing screen display size | 9 Inches |
| is discontinued by manufacturer | No |
| global trade identification number | 00846568000904 |
