AHD 1080P Backup Camera, Metal Housing 170 Degree Wide View Angle Universal Car Front/Side/Rear View Camera, Easy Install, Removable Guildlines, Mirror Non-Mirror Image, AHD 1080P/720P, 12V/24V
Regular price
Rs. 2,014.55
Regular price
Rs. 2,287.38
Sale price
Rs. 2,014.55
Unit price
per
Couldn't load pickup availability
About this item
- 【Support AHD 1080P and AHD 720P switching】This backup camera supports seamless switching between AHD 1080P and AHD 720P resolutions. By default, it outputs an AHD 1080P signal to enable 1080P display (provided the connected screen supports AHD 1080P). If your head unit only supports AHD 720P, please cut the orange wire loop to adjust the camera to output an AHD 720P video signal.

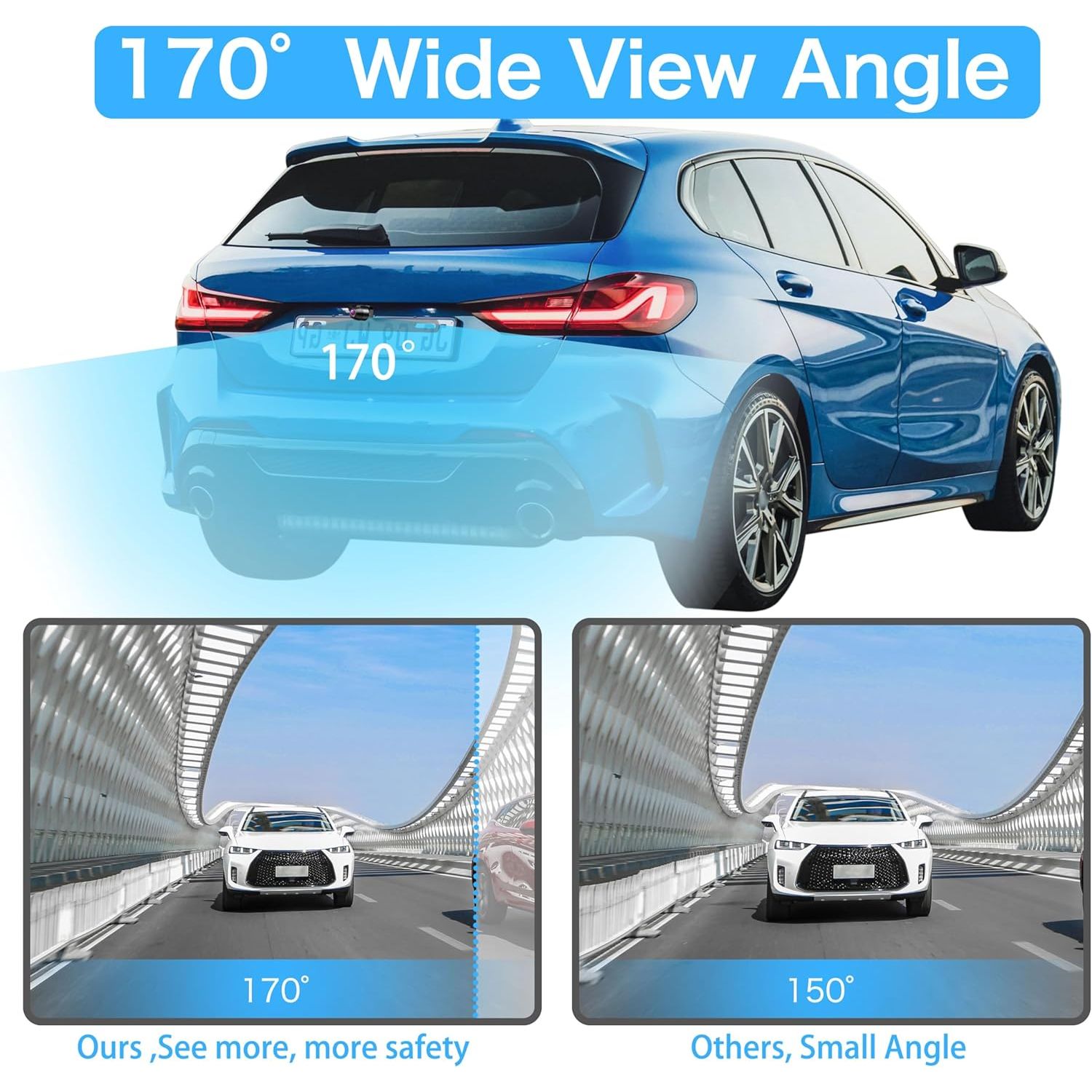

- 【170° Wide Angle Optical Glass HD Lens】The lens is the core component of a rearview camera system. The HD lens in the wide-angle backup camera stands out from standard lenses in both design and functionality. Its larger aperture and technologically advanced features, combined with high-transmittance glass and a fish-eye aesthetic, directly enhance the camera’s wide-angle, maximum pixel output, and low-light performance

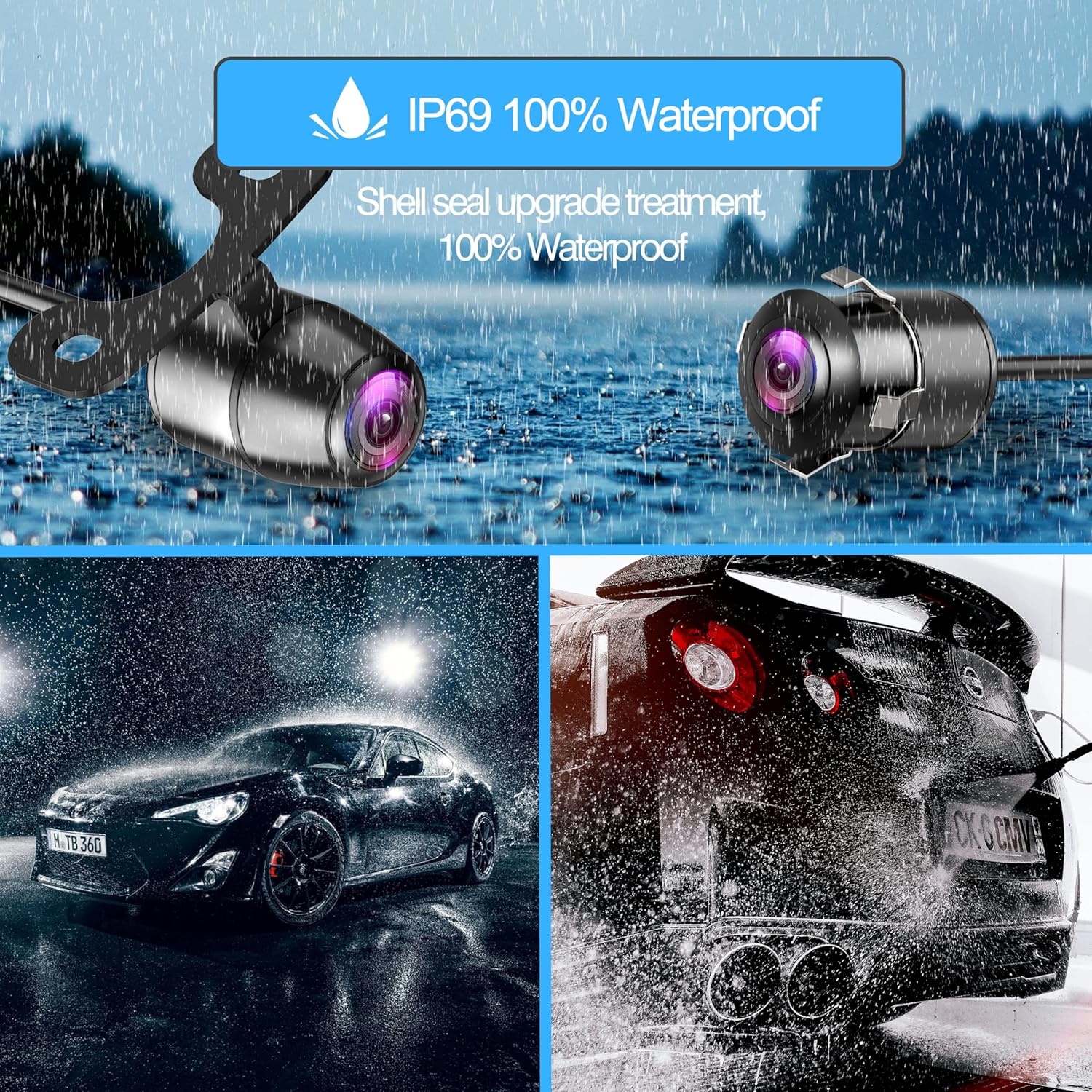

- 【Metal Housing, Remarkable Waterproof IP69】The backup camera for car features a robust metal housing and achieves an IP69K waterproof rating. Designed with fully sealed glue-filling technology. You can confidently use this camera without worrying about moisture, fog, or dust ingress
- 【Multifunctional wire loop】This back up camera has 3 built-in multifunctional switching loops, cut the orange loop: convert AHD 1080P to AHD 720P image; cut the green loop: cancel the guide line; cut the white loop: convert rear view to front view. The default setting is AHD 1080P rear view image with guide line. It's a universal camera for most vehicles, such as cars/trailers/RVs/vans/SUVs/campers and so on, effectively avoiding any blind spots when back up
- 【Important Notes】1.This car backup camera support AHD1080P/AHD720P, please go to Car settings>Factory settings>Reverse(Picture)settings>select AHD1080P/AHD720P if you connect to head unit. If you can't find the AHD1080P/720P option in the car settings, it's highly likely that this car system does not support AHD signal. 2.This camera is only compatible with car screen with R-CA connector, not for dash camera, GPS and car recorder
Description

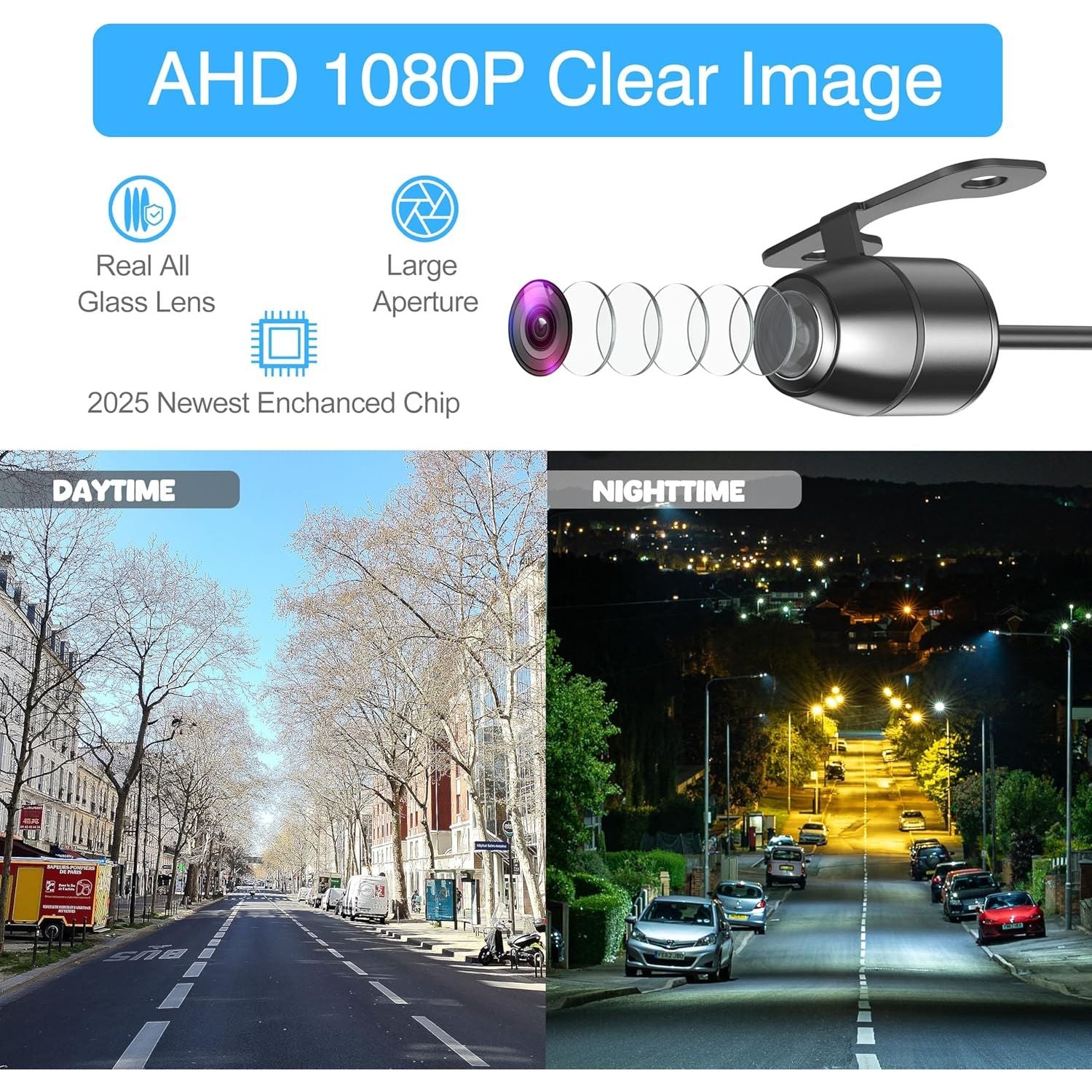

This vehicle backup camera features the latest 1080p chip specifically designed for reversing, delivering excellent image output in both strong and low light conditions. With high-quality video cables and power cords to ensure a more stable and clear image.

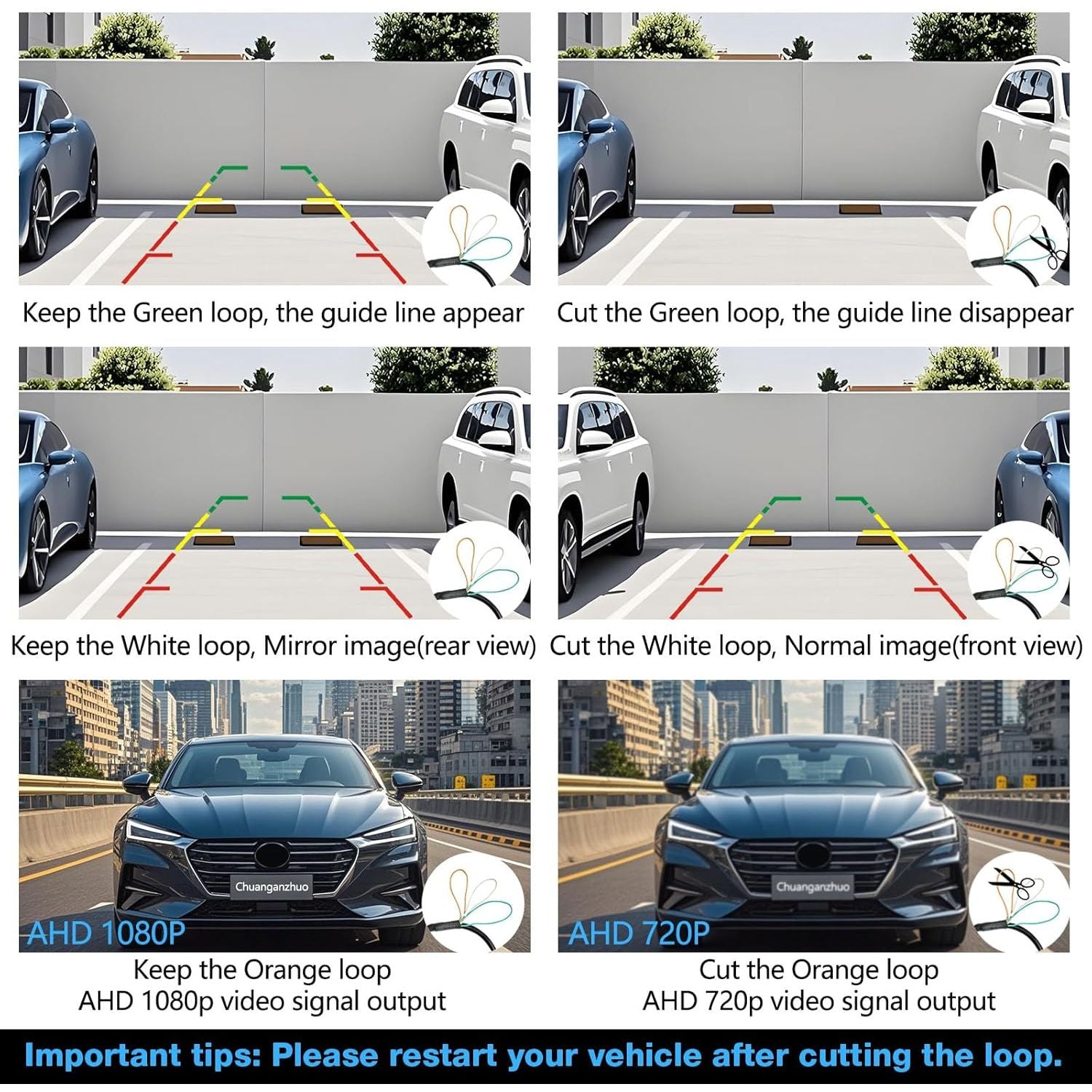

3 Important Wires/Loops Control Design:
The backup camera for car comes with 3 small wires/loops.
The default setting is AHD 1080P video signal, rear view image with guide lines.
Cut the orange loop: convert AHD 1080P to AHD 720P image;
Cut the green loop: cancel the guide line;
Cut the white loop: convert rear view to front view.
Important Notes: Please power off the vehicle and power it on again after you cut the small loops. Then the image should be converted successfully. Please feel free to let us know if your image cannot be converted successfully.

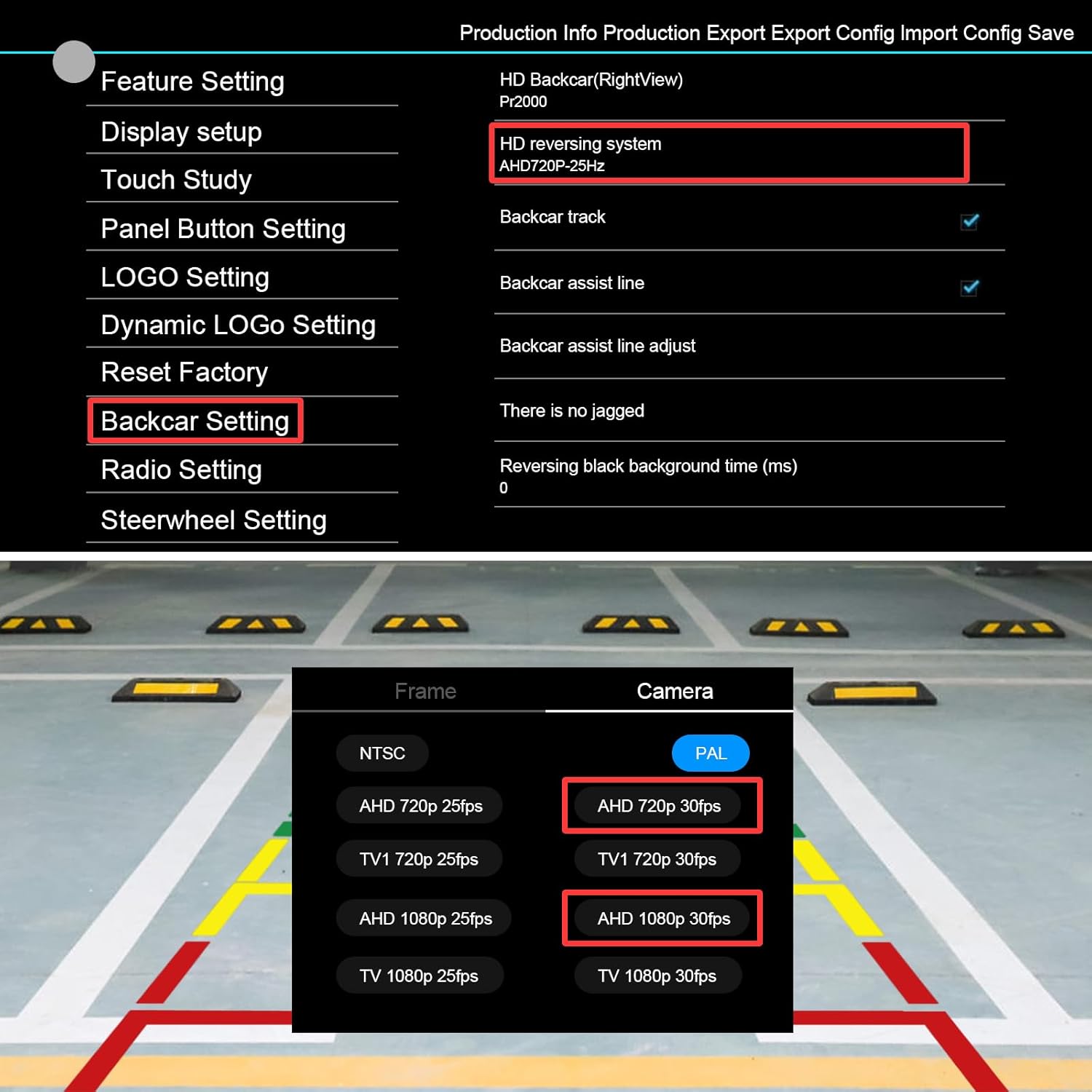

*If you connect to head unit, you can select the camera image by following this operation:
Car settings>>Factory settings>>Reverse(Picture)settings>>select AHD 1080p 25fps/AHD 720p 25fps.
Keep the orange loop to select AHD 1080p 25fps, and Cut the orange loop to select AHD 720p 25fps.
*If you can't find the AHD1080P/720P option in the car settings, it's highly likely that this car system does not support AHD signal. Please confirm compatiblity with the head unit.

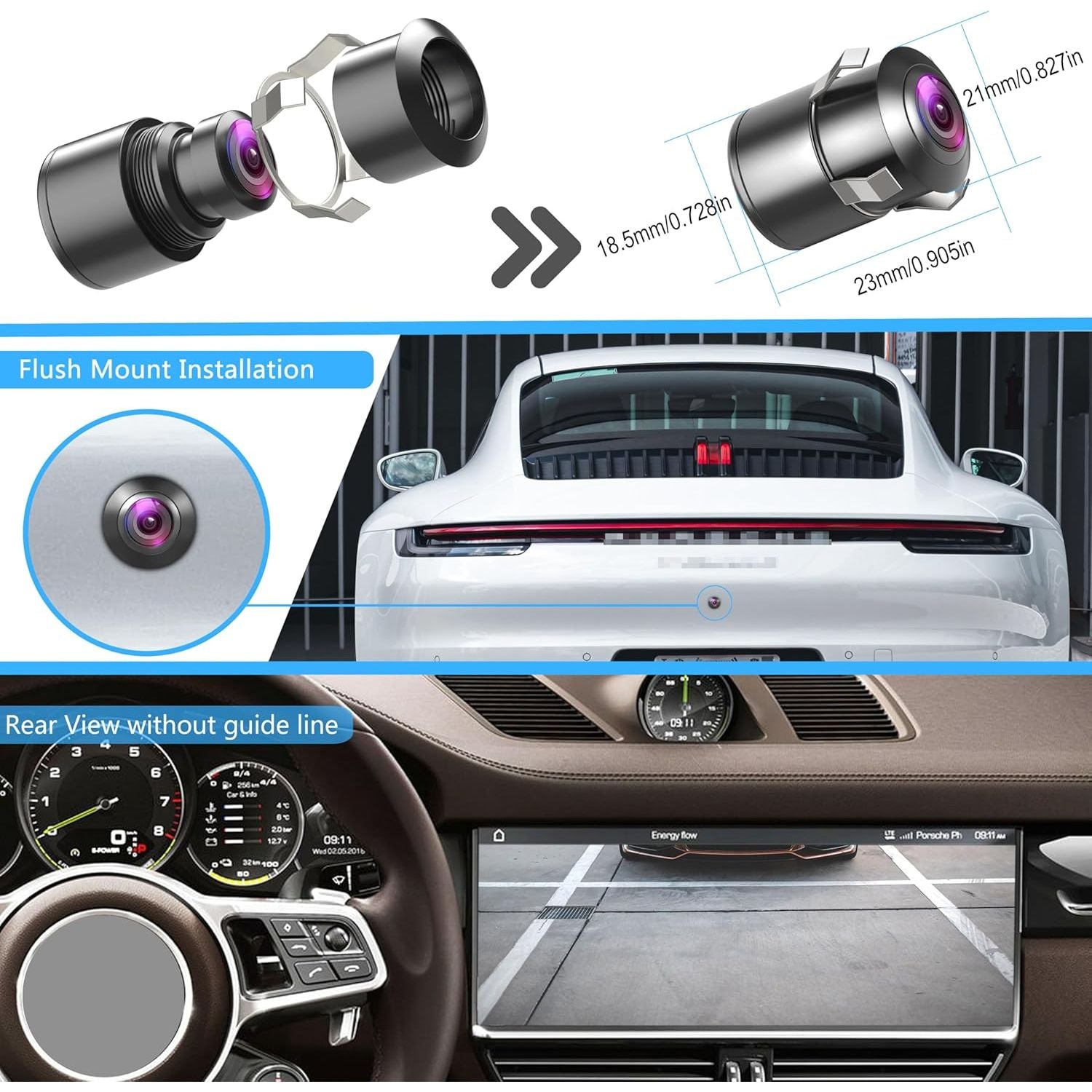

Using this method to install the camera is more invisible and beautiful, however, please make sure that finding out the accurate installation position to get better view angle before installation, because it is difficut to ajust the camera after finish flush mount installation.
Product Details
| Property | Value |
|---|---|
| asin | B0F9X2X36Q |
| item weight | 10.8 ounces |
| manufacturer | Chuanganzhuo |
| customer reviews | 4.3 4.3 out of 5 stars 260 ratings 4.3 out of 5 stars |
| whats in the box | 26ft Double Shielded Video Wire, 5ft Camera Power Wire, Camera |
| best sellers rank | #90,202 in Electronics (See Top 100 in Electronics) #1,310 in Vehicle Backup Cameras |
| item model number | AHD 1080P |
| product dimensions | 8.3 x 3.2 x 2.1 inches |
| date first available | July 20, 2025 |
| other display features | Wireless |
