1Set USB Logic Analyzer Device Set USB Cable 24MHz 8CH 24MHz 8 Channel UART IIC SPI Debug for Arduino ARM FPGA M100 Hot

Rs. 887.31
Rs. 887.31
Default: Default

About this item

  • This item is an logic analyzer designed to be compatible with Saleae Logic Analyzer software.This item is also supported for PulseView.
  • Sampling rate up to: 24 MHz , can be 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz.
  • The logic for each channel sampling rate of 24M/s. General applications around 10M, enough to cope with a variety ofoccasions.
  • A total of 8 digital channels, the voltage range is 0V and 5.5V, of which 1.5V is the voltage threshold, below 1.5V is considered low, above 1.5V is considered high.

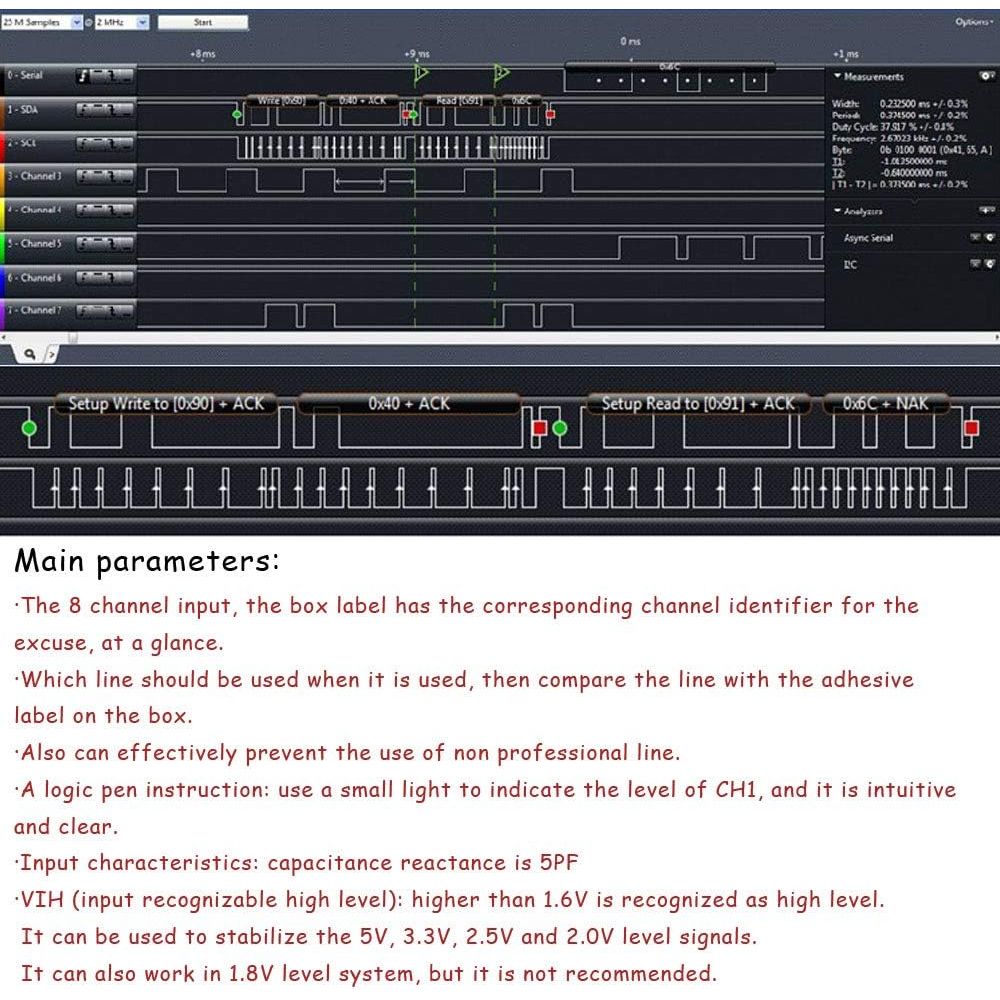

  • UART, SPI, IIC and other communication debugging, let you get twice the result with half the effort. 24M sampling rate, can automatically analyze UART, IIC, SPI and many other standard protocols.

Description

This item is an logic analyzer designed to be compatible with Saleae Logic Analyzer software.This item is also supported by the software by Sigrok called PulseView. Specifications: Works with 5V, 3.3V, 2.5V, 2.0V systems. May work with 1.8V but not recommended Input Impedance: 1Mohm || 10pF (typical, approximate) Crystl: +/-20ppm, 24MHz Error/Accuracy: pulse-width measurement: +/- 42ns (at 24MHz) Note: The installation of electronic modules requires basic knowledge and requires a certain electronic professional foundation and hands-on ability. Please purchase carefully!

Product Details

Property Value
ram ‎LPDDR4
asin ‎B07KW445DJ
brand ‎Comidox
series ‎CP317
item weight ‎1.76 ounces
manufacturer ‎Comidox
processor brand ‎ARM
customer reviews 4.6 4.6 out of 5 stars 137 ratings 4.6 out of 5 stars
operating system ‎Linux, Windows
best sellers rank #74,887 in Industrial & Scientific (See Top 100 in Industrial & Scientific) #4 in Logic Analyzers
item model number ‎CP317
package dimensions ‎5.67 x 3.78 x 0.94 inches
date first available ‎November 26, 2018
number of processors ‎1
is discontinued by manufacturer ‎No
