  5. DONGKER PWM Signal Generator,ZK-PP2K LCD Pulse Frequency Cycle Module 1Hz-150KHz LCD Motor Controller
By DONGKER

DONGKER PWM Signal Generator,ZK-PP2K LCD Pulse Frequency Cycle Module 1Hz-150KHz LCD Motor Controller

Rs. 0.00
Rs. 0.00
Default: Default

About this item

  • ZK-PP2K Signal Generator Is A Device that Provides Electrical Signals At A Variety of Frequencies, Square Wave,pulse and Output Levels.It Supports Dual Mode:PWM Mode and PULSE Mode.It Supports High Current Output and Can Be Directly Connected to the Motor.

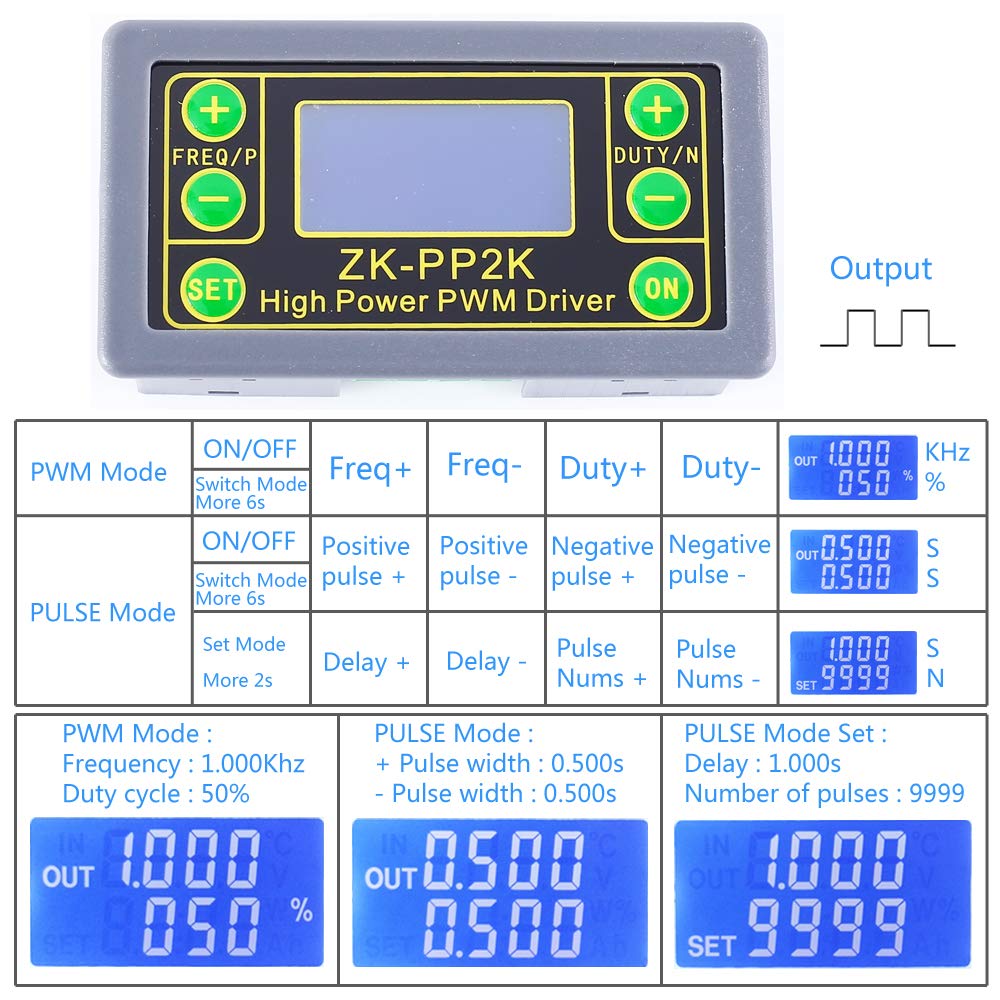

  • Use Steps:Connect to Power Supply. Select Work Mode as Following Manual. Short Or Long Press Button ‘FREQ+’ Or ‘FREQ-’ to Set .Short Or Long Press Button ‘DUTY+’ Or ‘DUTY-’ to Set Parameter.Connect to Load.
  • It Is Used as A Signal Source Or Excitation Source For Testing.Widely Used in Production Practice and Technology. Square Wave Signal Generator, Generating Square Wave Signal For Experimental Development. Used to Generate A Square Wave Signal that Controls the Motor Driver. Generate Adjustable Pulses For Use By the MCU

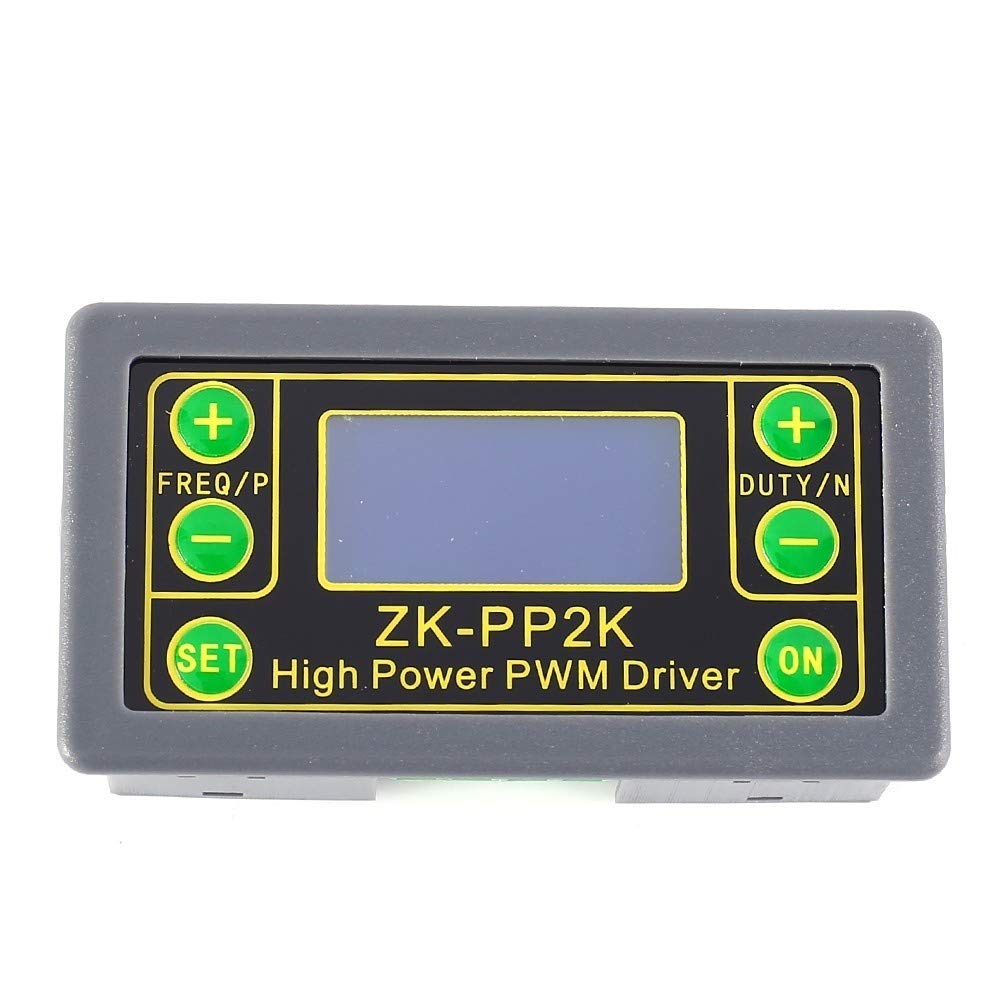

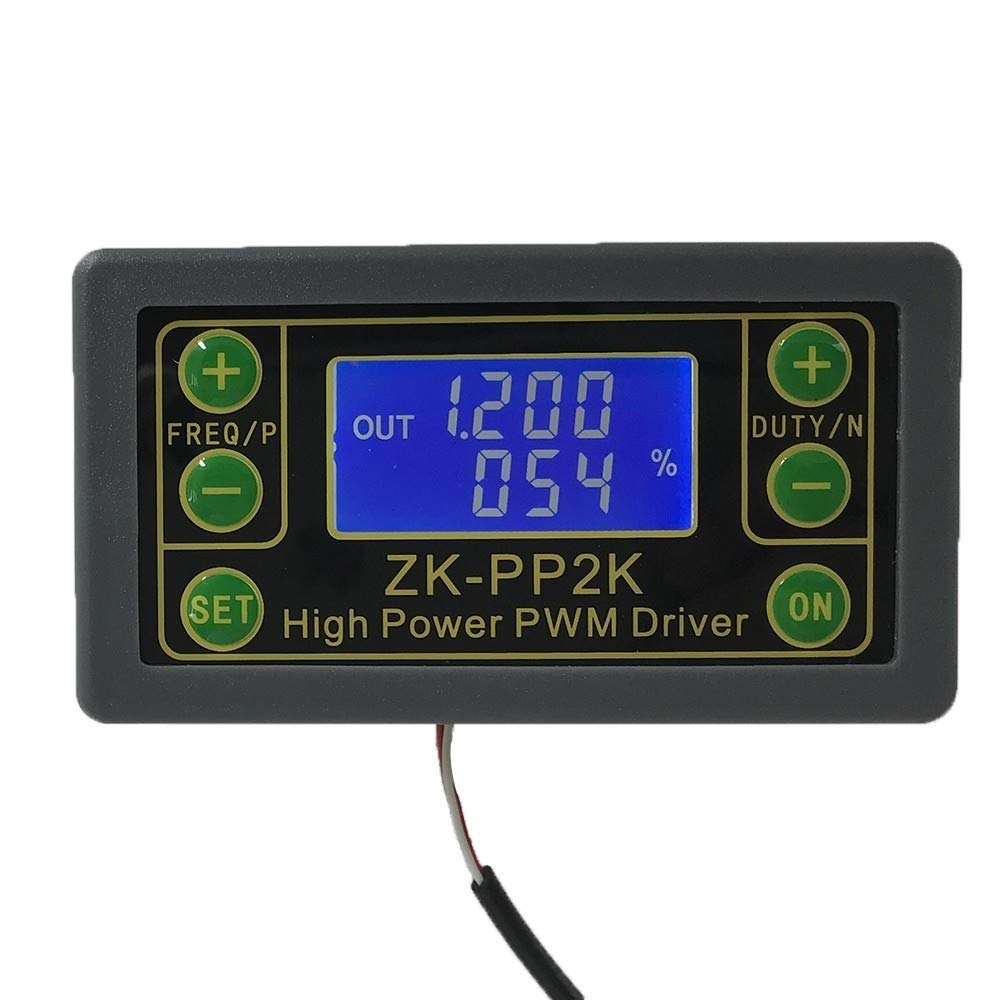

  • LCD High Definition Display. Support Frequency Adjustment.Support Duty Cycle Adjustment
  • SHOP WITH CONFIDENCE: To Provide You With the Highest Quality Service, If You Have Any Question, Please Contact Us.We Will Provide After-sales Service Until You Are Satisfied.

Description

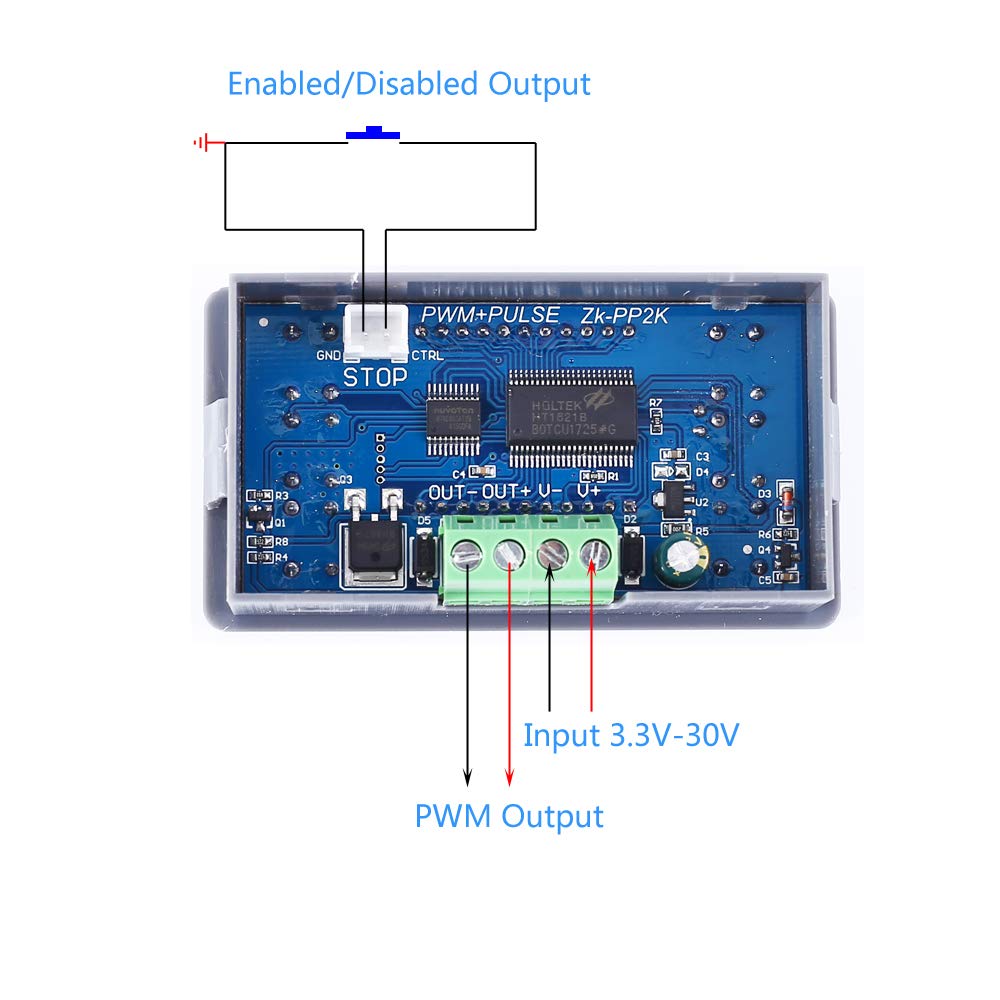

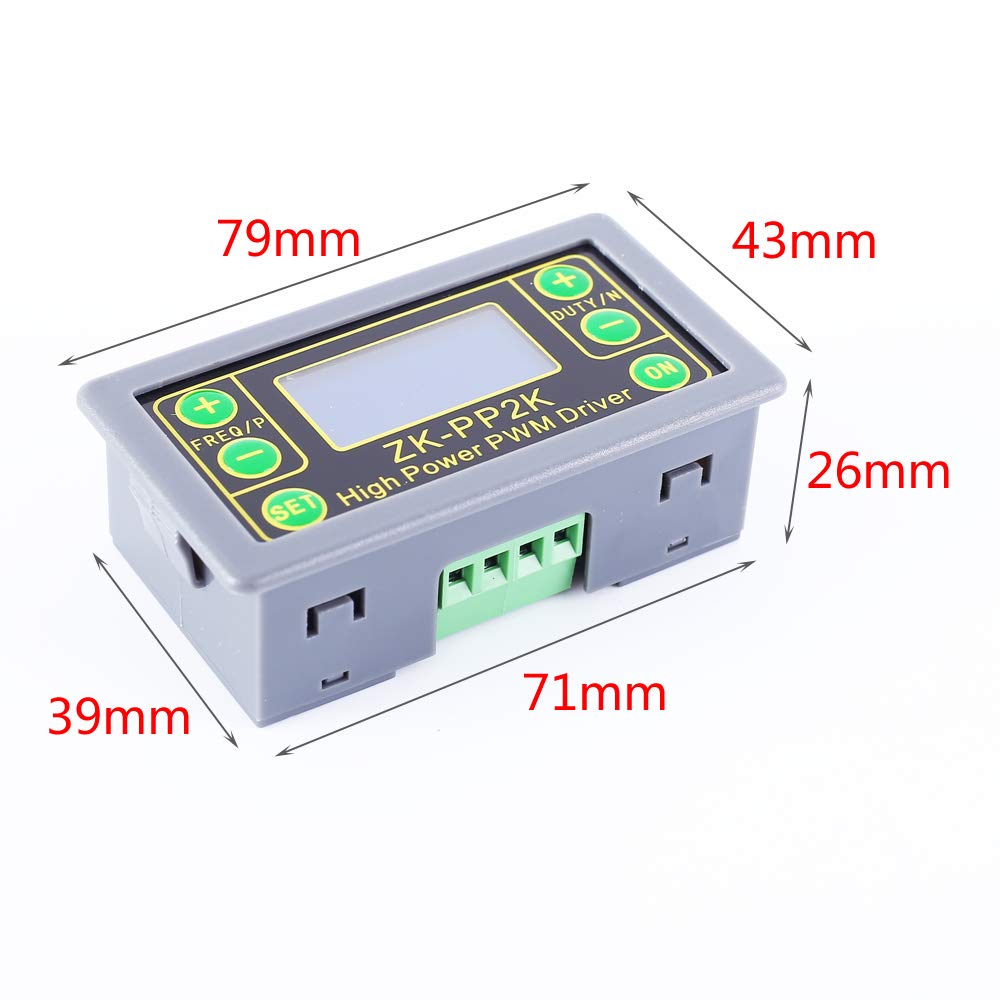

Features: 1>.Dual mode:PWM mode and PULSE mode 2>.LCD high definition display 3>.Support frequency adjustment 4>.Support duty cycle adjustment 5>.High precision detection 6>.Support power-down memory function 7>.1-Channel signal output 8>.Support reverse protection 9>.Support enabled/disabled output 10>.Direct drive LED/Motor/solenoid valve Parameters: 1>.Product name: ZK-PP2K PWM Signal Generator 2>.Model: ZK-PP2K 3>.Work voltage:DC 3.3V-30V 4>.Frequency range:1Hz~150KHz 5>.Frequency accuracy:2% 6>.Duty cycle range:0.00%-99.99% 7>.Output Current:8A(Max) 8>.Number of pulses:1~9999 or Infinite 9>.Delay time:0.000s~9999s 10>.Pulse width:0.000s~9999s 11>.Time accuracy:1ms 12>.Output amplitude:Same to input voltage 13>.Work Temperature:-20℃~85℃ 14>.Work Humidity:0%~95%RH 15>.Size:79*43*26mm Note: 1>.It’s 1-channel signal output signals. 2>.Its maximum output current is 8A.Therefore it can directly drive high-power devices such motor. 3>.Please read use manual and description before use. Package list : 1>.1pcs ZK-PP2K PWM Signal Generator

Product Details

Property Value
asin B08HV2FPJR
manufacturer DONGKER
best sellers rank #373 in Function Generators
product dimensions 3.11 x 1.69 x 1.02 inches; 1.41 ounces
date first available September 11, 2020
