  5. 6.0 mm 3D Scanning Marker for 3D Scanner, 3D Tracking Dot Reference Point Markers for 3D scanning, Diffuse Reflection Markers for 3D Scanner (200)
By LEDGM

6.0 mm 3D Scanning Marker for 3D Scanner, 3D Tracking Dot Reference Point Markers for 3D scanning, Diffuse Reflection Markers for 3D Scanner (200)

Rs. 797.59
Rs. 797.59

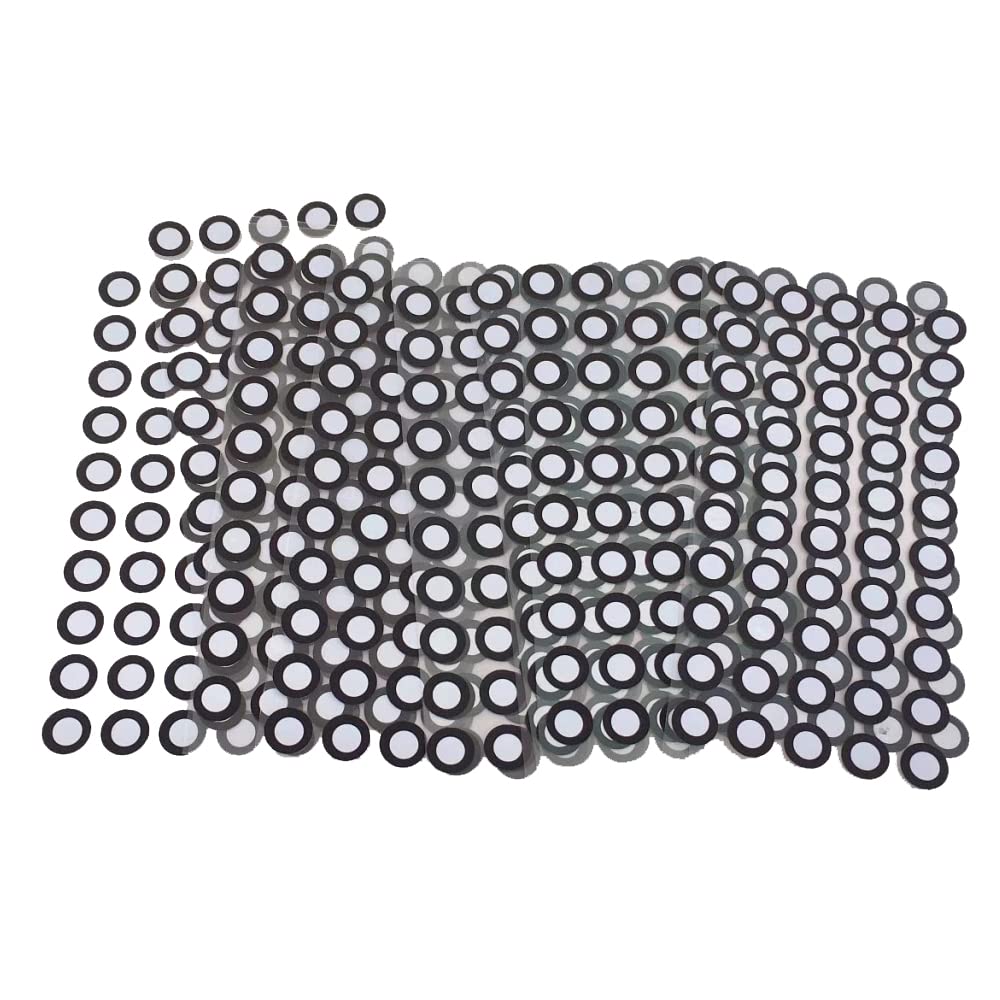

Number of Items: 200

About this item

  • The 3D scanning marker point is an indispensable auxiliary positioning tool and calibration tool in the fields of optical surveying and mapping, machine vision etc,suit for Laser 3D Scanner and White light Scanner.

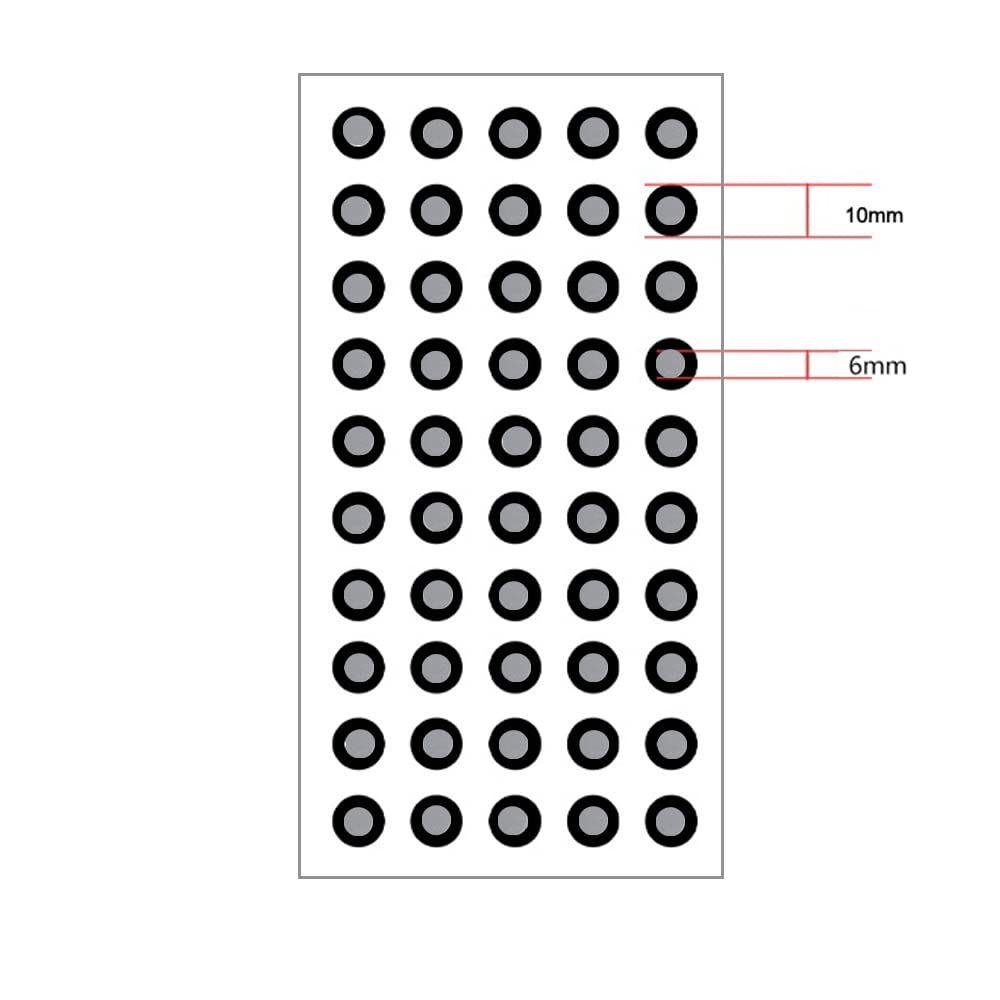

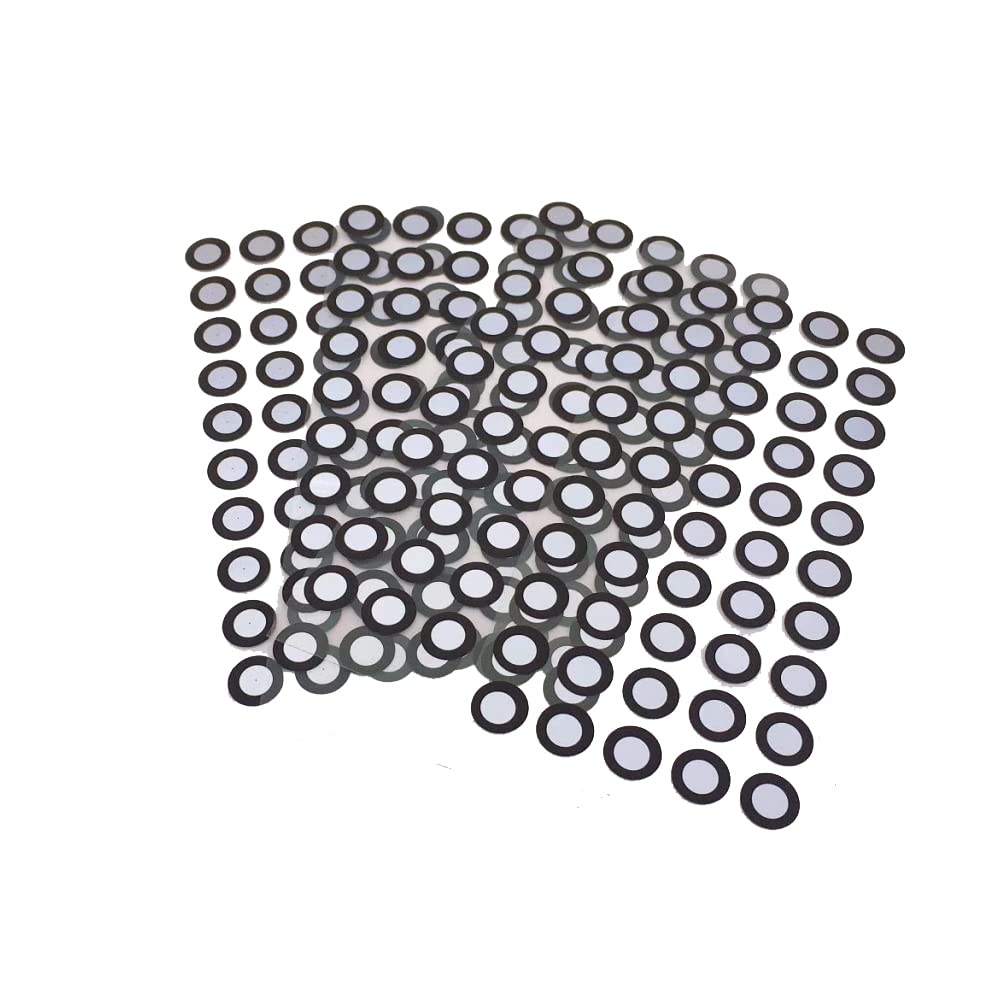

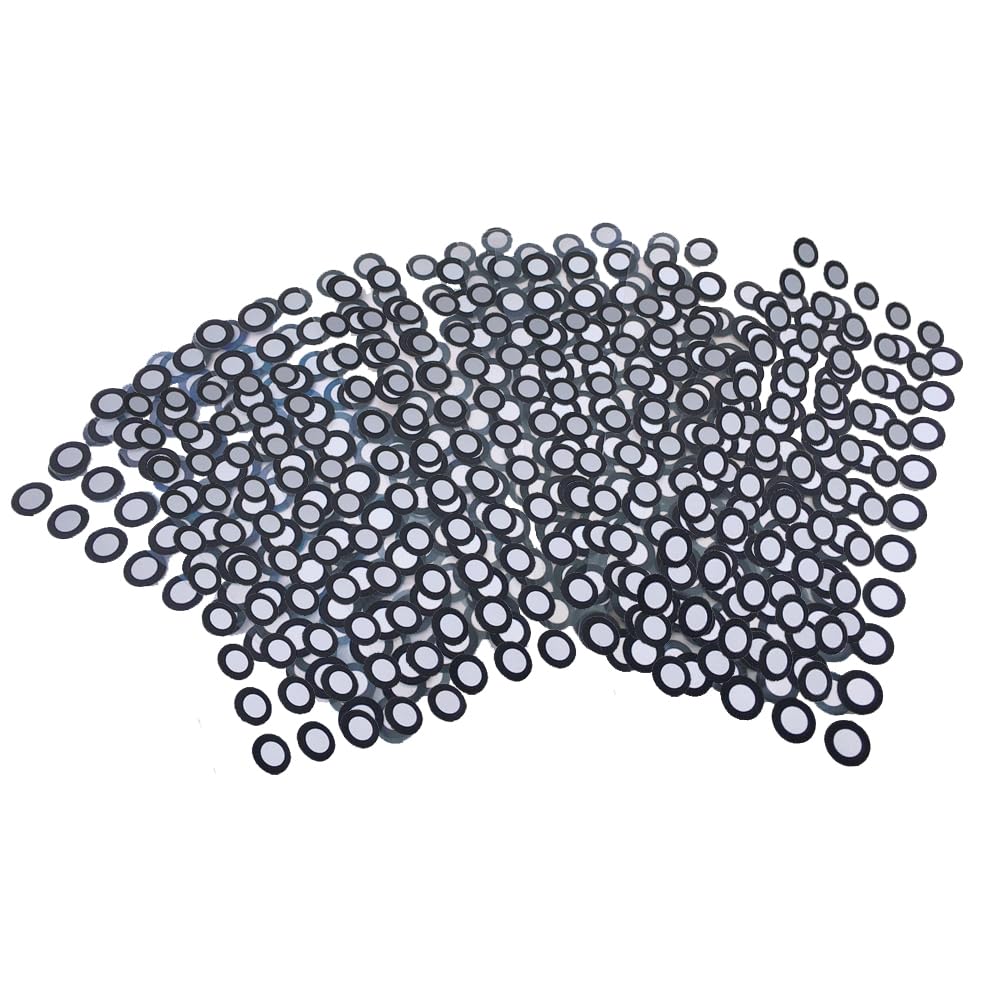

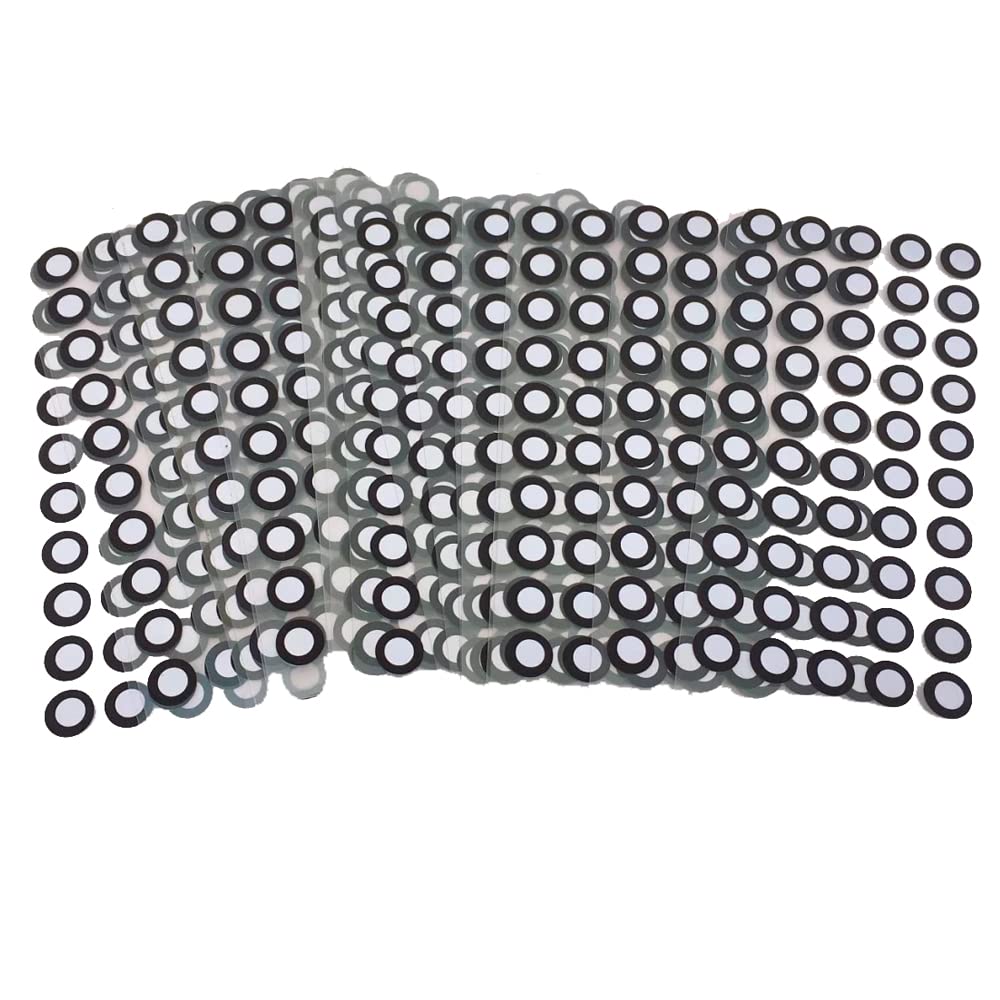

  • High reflective 3D point markers with Inner diameter: 6.0 mm, Outer diameter: 10 mm, Round on adhesive foil as tear-off pad, 50 reference single point markers points per sheet.

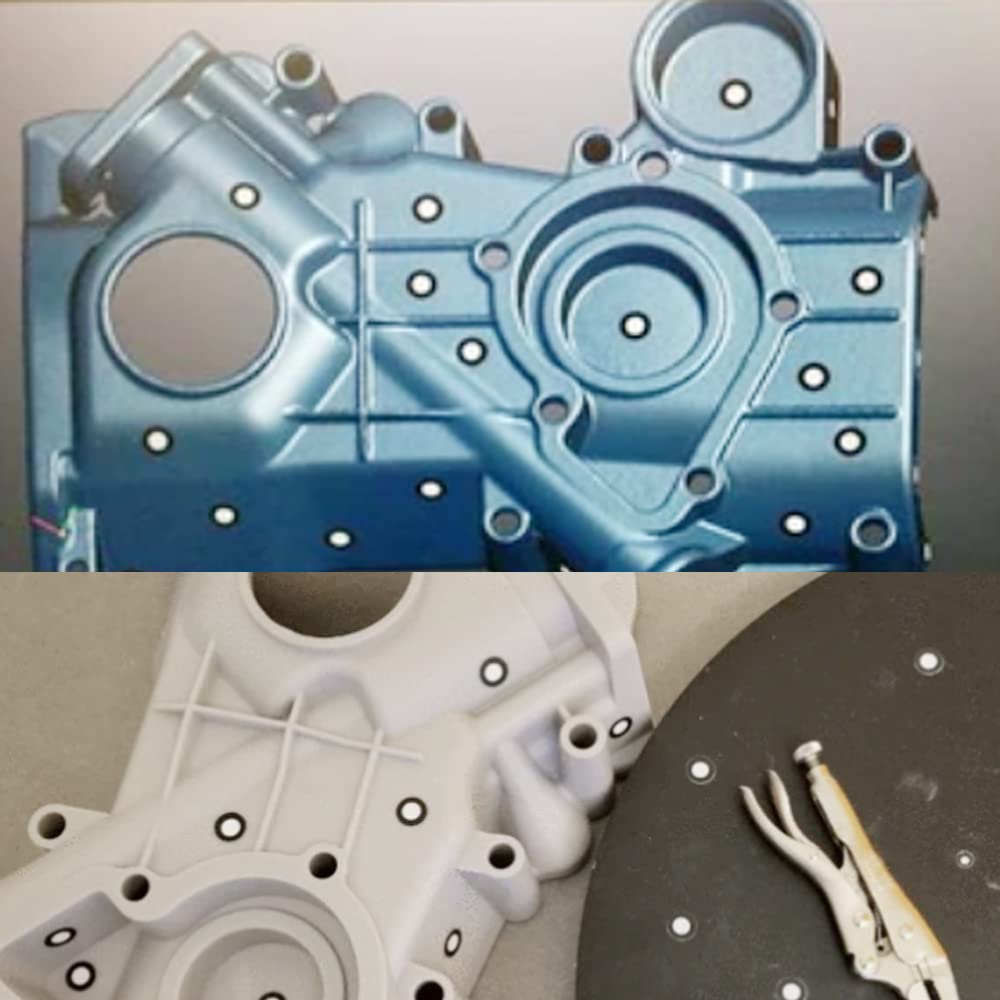

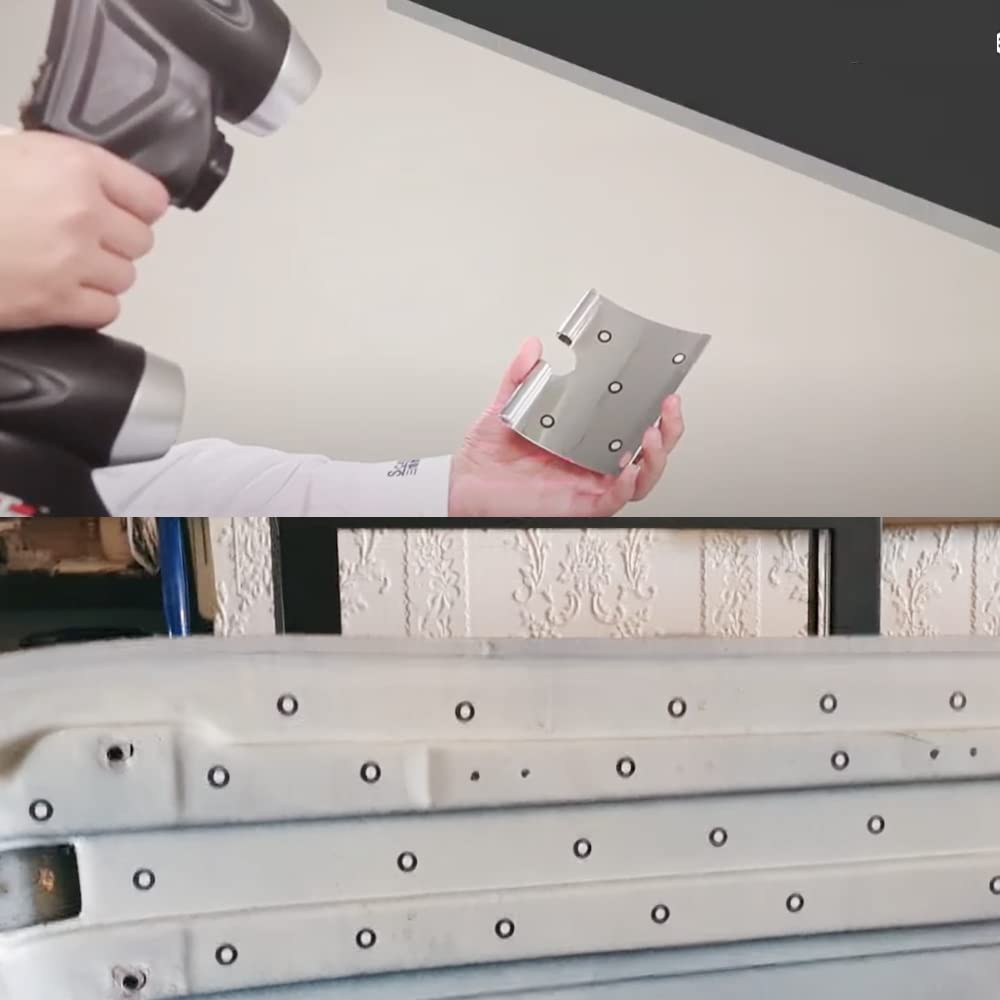

  • 3D Scanner Markers are usually applied on (or near) the object being scanned, to increase accuracy and repeatability of 3D data. You would need markers to scan a flat surface with little or no geometry.

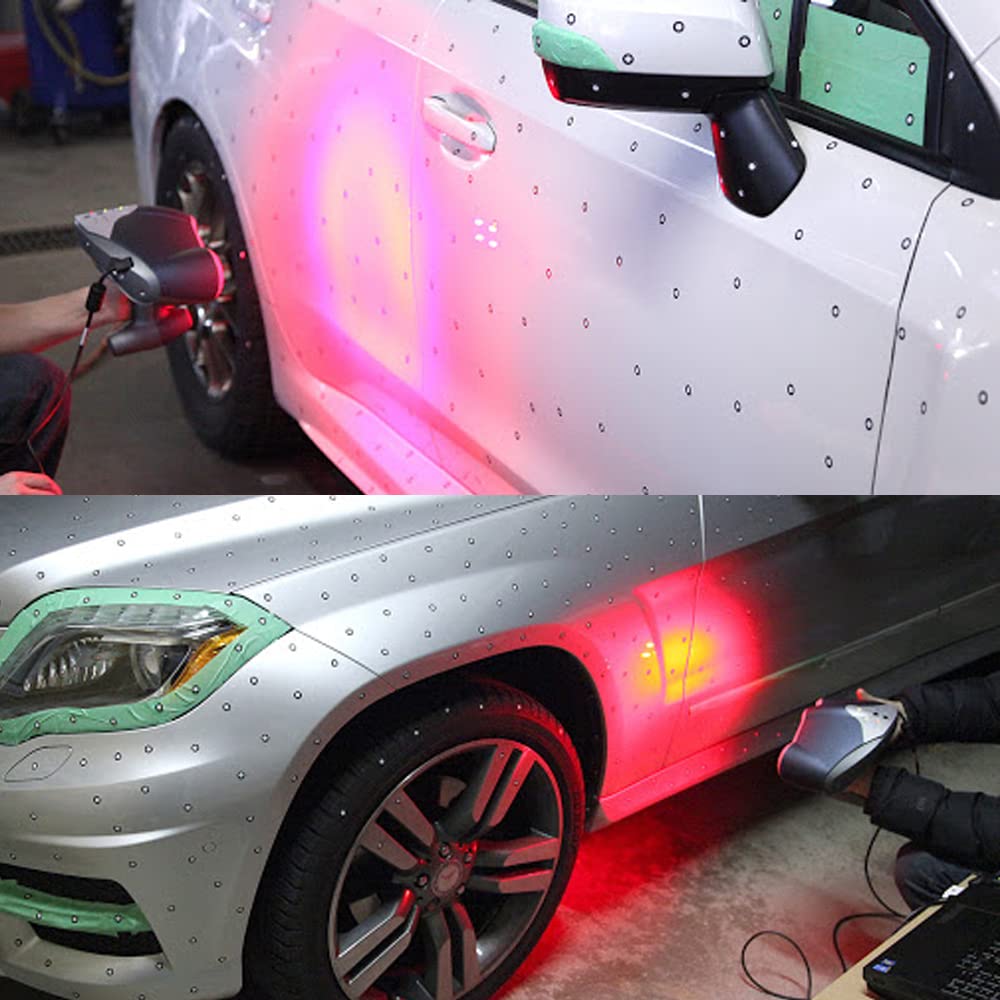

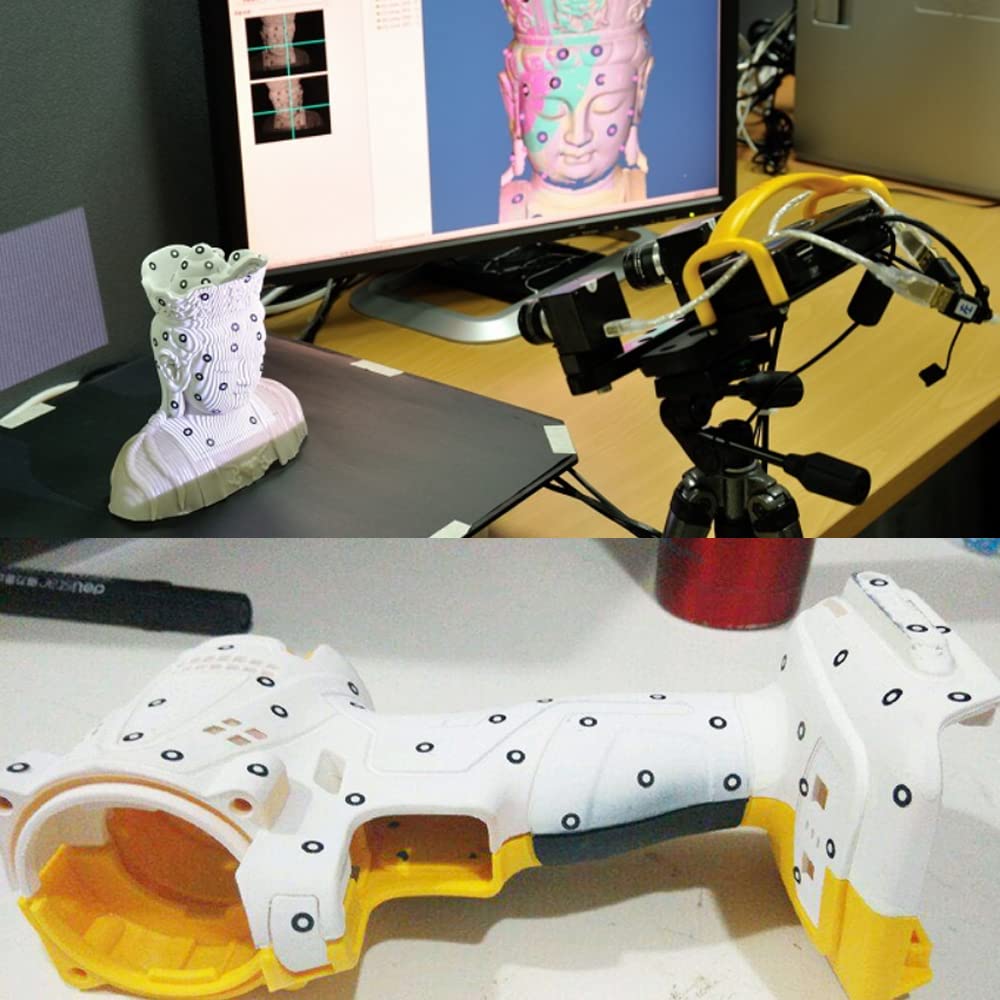

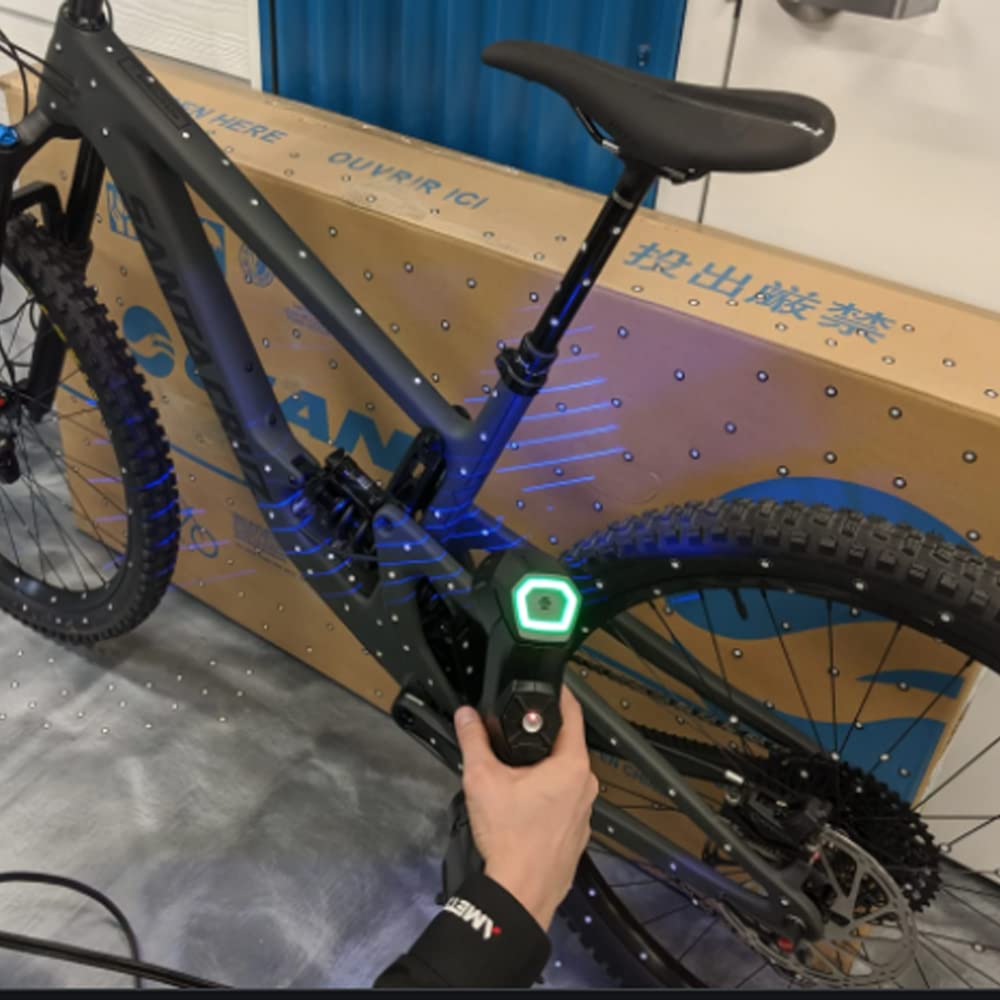

  • 3D Scanning Markers allow you to capture high-detailed scans effortlessly and help identify objects from their background. By using 3D markers, you do not lose tracking during scanning,so the process is faster and predictable.very useful when you want to scan smooth objects, such as cups, cars, sculptures, or anything with a smooth surface
  • 3D scanning adhesive markers in applications such as reverse engineering ,quality control,and high-end industry,where accuracy,reliability and repeatability is paramount, scanner tracking markers are essential.

Description

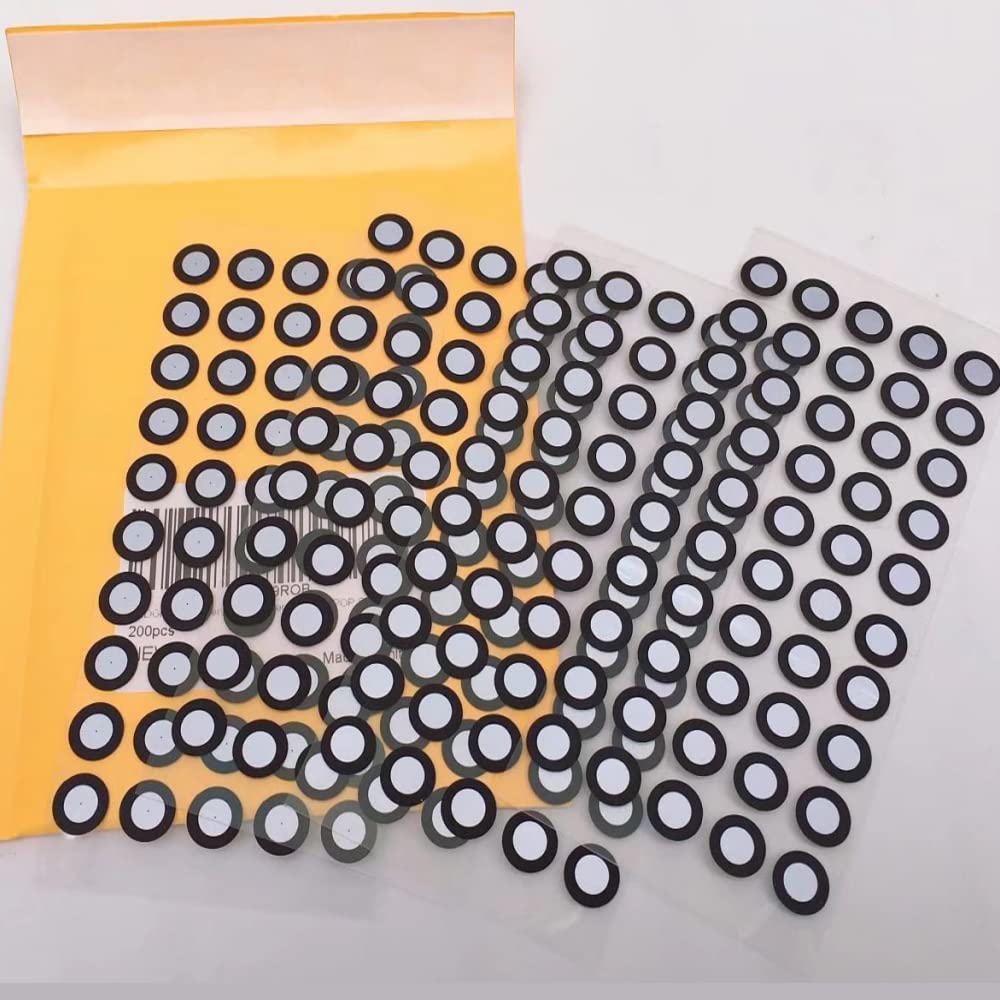

Without markers, the scanner will lose its alignment during scanning and the software will not know how Frame1 is supposed to be aligned to Frame2, Frame2 to Frame3 and so on… The software will try to align all frames using the objects’ unique geometry. However, this guesswork doesn’t always produce great results and in many cases, especially on objects with large flat surfaces and no unique geometry, even the most sophisticated algorithm will fail. Inner diameter: 6.0 mm Outer diameter: 10.0 mm Round, on adhesive foil as tear-off pad 50 single point marker each sheet,total 4 sheet Depending on what accuracy you request, markers should be placed randomly approximately 5cm apart for Minimum 10cm for Medium and 15cm for Maximum. 3 pcs markers in each frame is the absolute minimum, but 5 pcs markers are recommended to ensure smooth operations.

Product Details

Property Value
asin B09Q7SY7PG
manufacturer Gangming
best sellers rank #247 in 3D Printer Accessories
date first available January 12, 2022
Brand: LEDGM
