  5. VSDISPLAY VGA DVI LVDs Controller Board 40Pin for 15.6" 1366x768 LP156WH2 LP156WH3 LP156WH4 TL B156XW02 N156B6-L0b LCD Screen
By VSDISPLAY

VSDISPLAY VGA DVI LVDs Controller Board 40Pin for 15.6" 1366x768 LP156WH2 LP156WH3 LP156WH4 TL B156XW02 N156B6-L0b LCD Screen

Rs. 2,484.95
Rs. 2,484.95
Default: Default

About this item

  • Work for 15.6 inch 1366x768 40 pin WLED LVDs LCD display ,the screen model no. are: 15.6 inch LP156WH2 TL LP156WH3 TL LP156WH4 TL LP156WHB TL BT156GW02 N156B6 B156XTN03 B156XW02 B156XW04.

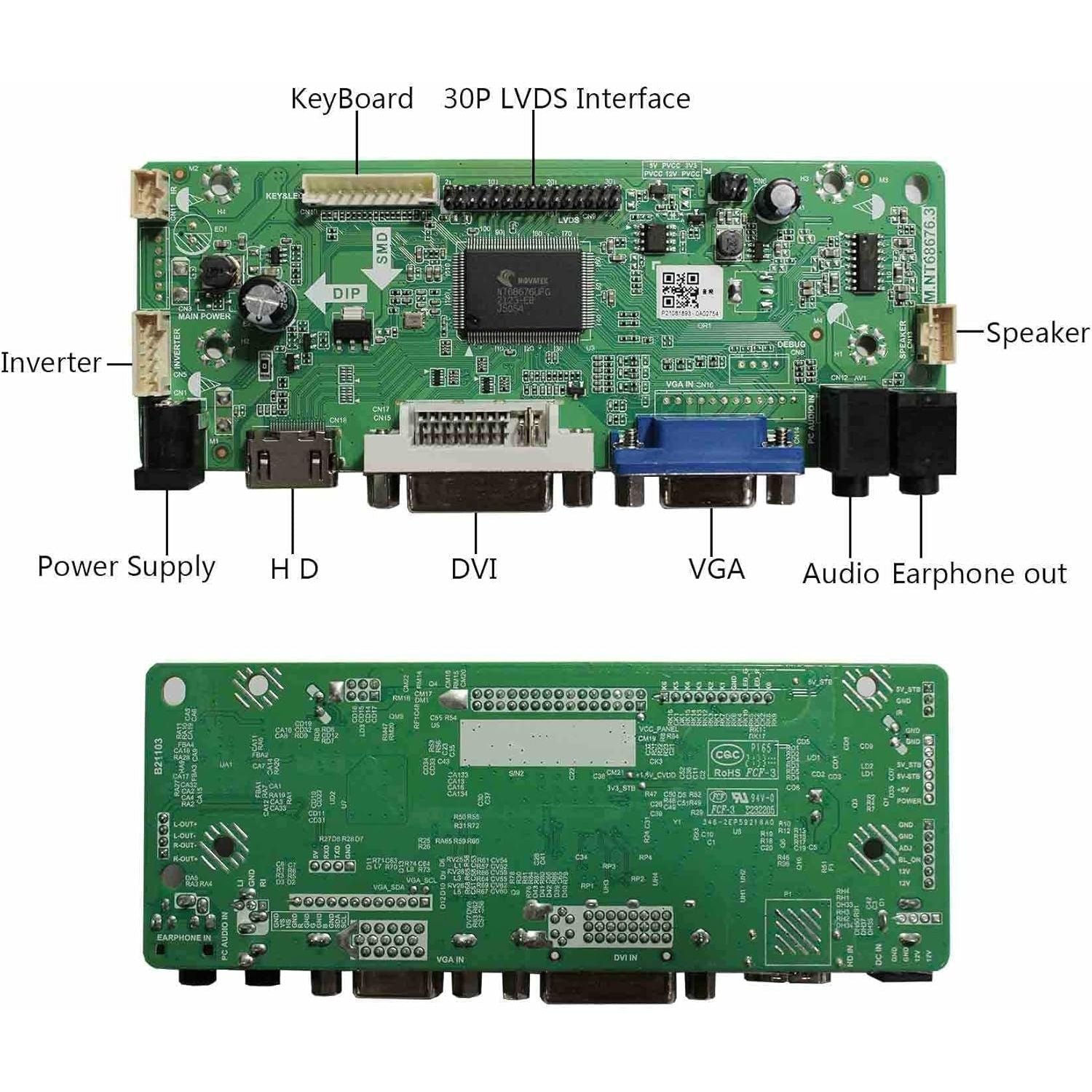

  • Video input: VGA DVI ,Audio Output: Speaker Connector （8ohm 2W 4Pin PH2.0 connection),Please use the board in insulated environment.
  • Input Power : 12V DC more than 2A ,port size :5.5x2.1mm, pls prepare power adapter by yourself.If screen restart again and again ,pls change a larger current power supply and try again.

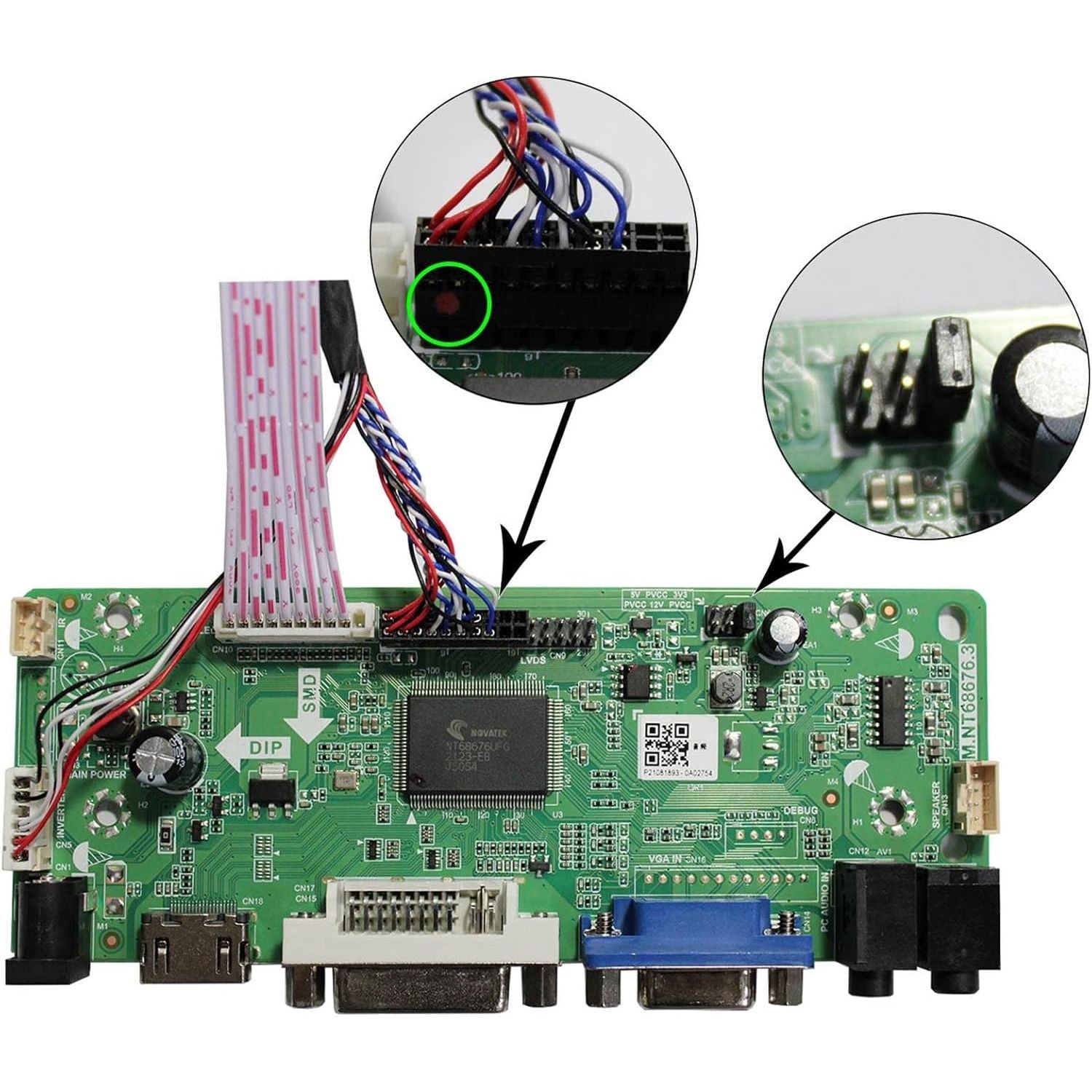

  • Plug & play: with compatible screen , connect screen signal port as link pictures ,Power on ,enter into H/D/VGA/DVI signal cable ,the screen can be lit up .
  • Board failure self-check: Directly power on board ,The LED light green/red means board can work normally ;Then connect screen signal port, No enter signal ,the"no siganl" words showing on screen means the problem comes from signal ,Pls try with other signal cable /resource; White/Black screen ,Check screen signal port connecting/resolution/3.3V jumper pin/Signal resource.

Description

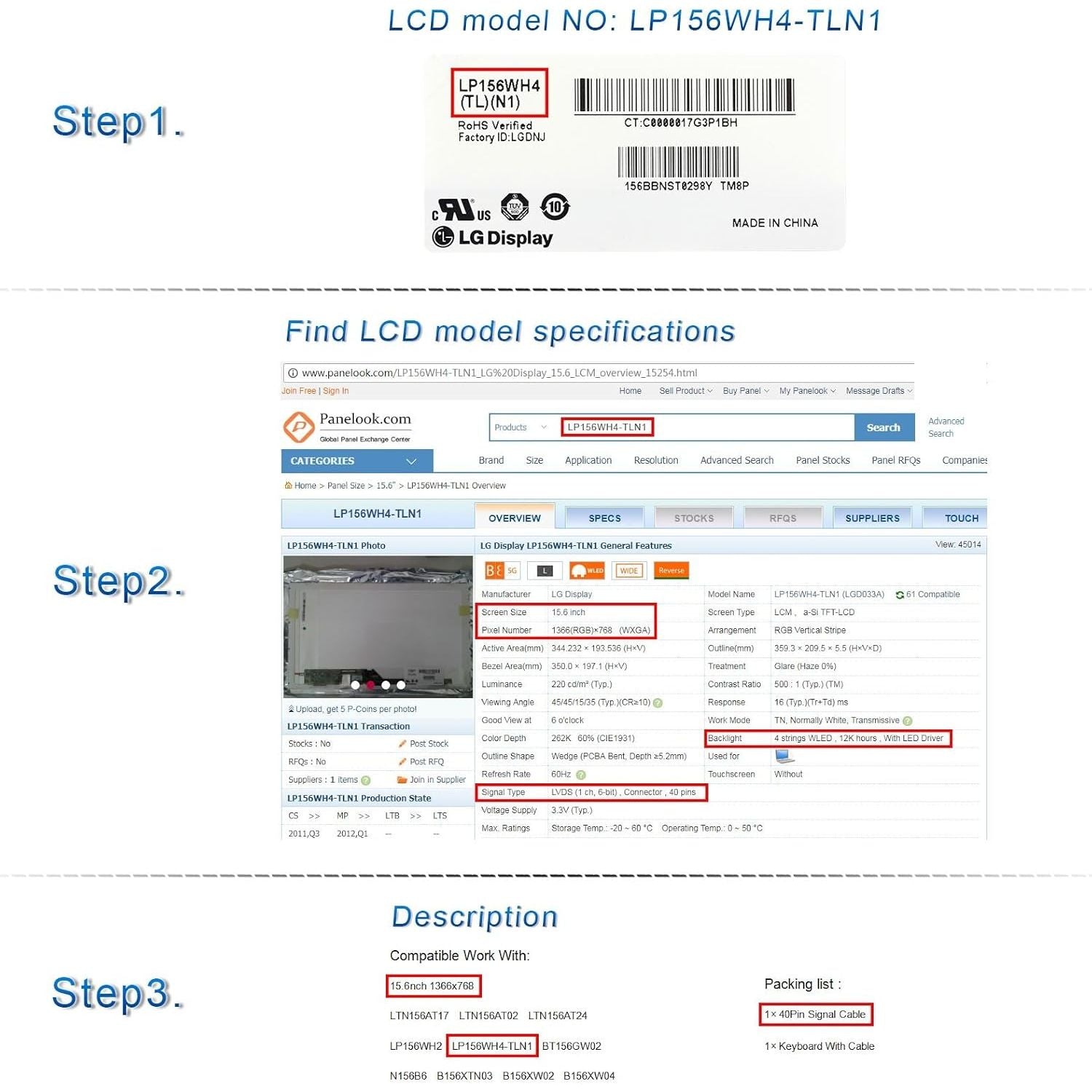

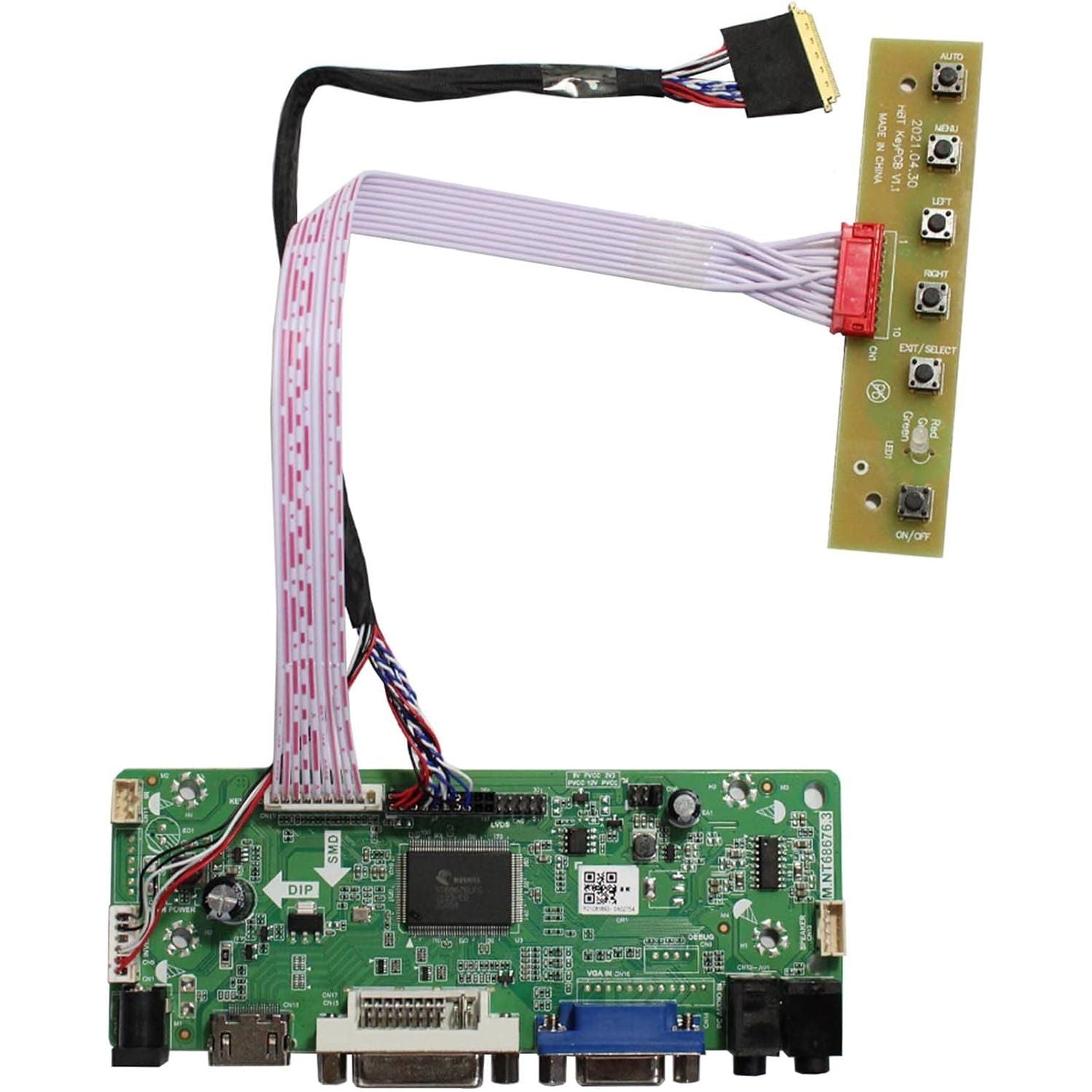

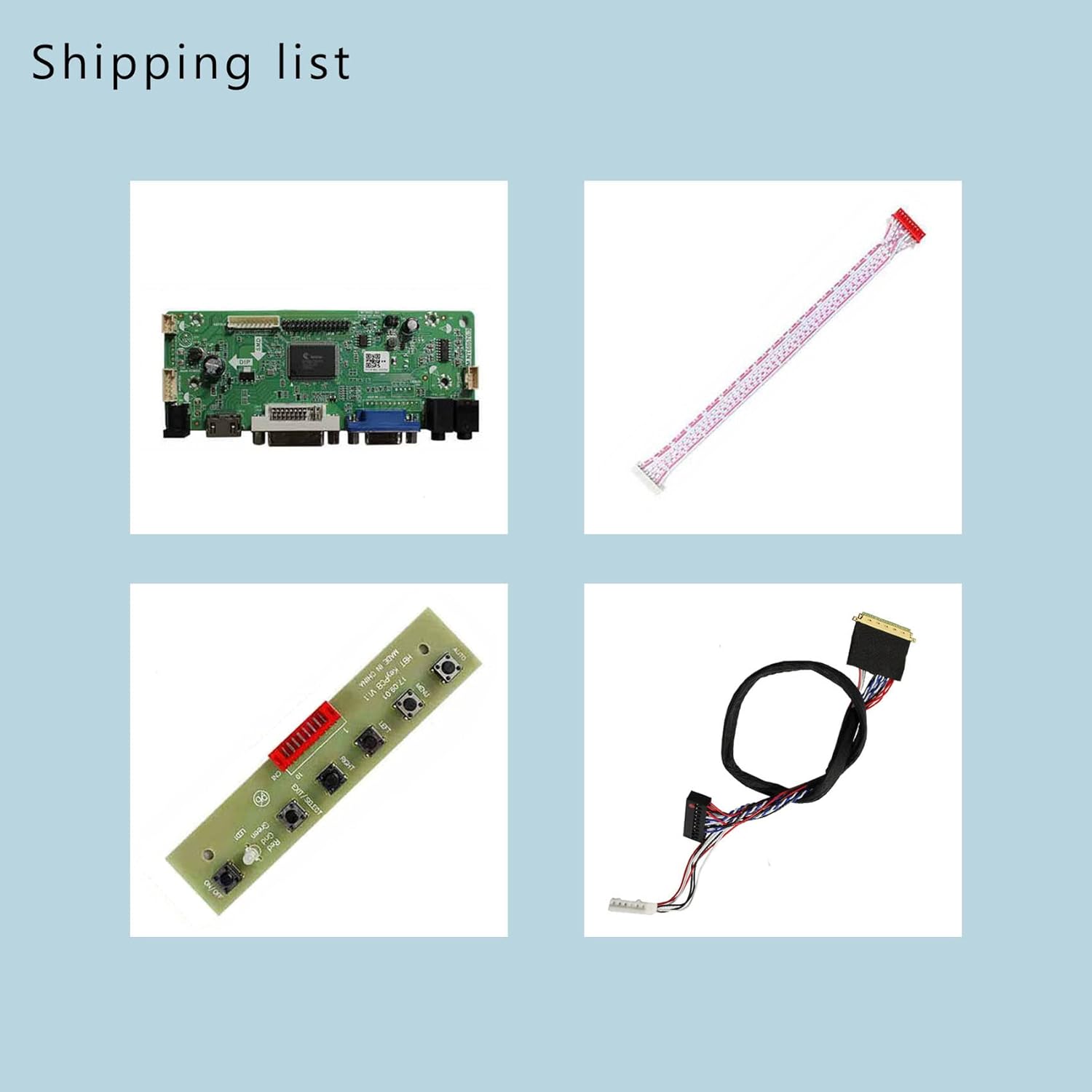

Fit For: 15.6inch 1366*768: LP156WH2 LP156WH3 LP156WH4 TL BT156GW02 N156B6 B156XTN03 B156XW02 B156XW04 B156XTN02.0 B156XTN02.1 Package content: 1× H/D+DVI+VGA+Audio lcd controller board 1× 40Pin LVDS Cable 1× Keyboard with Wire Note: 1.Power Supply is NOT included 2.If you dont know how to connect the Screen or any problems during using,pls keep us informed with cable connecting picture ,then we will catch you up in 12hours. 3.Before purchasing, Pls confirm your Display model firstly, which mark at the back side of the panel label,need to open the rear case to check.

Product Details

Property Value
asin B06X9SYFGM
voltage 12 Volts
resolution 1366 x 768
item weight 4.6 ounces
aspect ratio 16:9
manufacturer LCDBOARD
total usb ports 1
customer reviews 4.4 4.4 out of 5 stars 205 ratings 4.4 out of 5 stars
best sellers rank #384 in Laptop Computer Replacement Parts #1,552 in Computer Monitors
item model number ?????
package dimensions 5.87 x 3.98 x 1.1 inches
date first available February 24, 2017
standing screen display size 15.6 Inches
is discontinued by manufacturer No
